使用 场所 Service conditon | 型号 Type | 避雷器 额定电压 MOA Rated voltage kV | 持续运 行电压 Continous operation voltage kV | 直流1mA 参考电压 DC Min U1mA reference voltage kV≥ | 残压峰值Residual voltage(kV) | 方波冲击电流 耐受2000μs Square wave current impulse withstand A | 大电流 耐受4/10μs High current mpulse kA | ||
1/4 μs 陡坡冲击电流 Steep current mpulse | 8/20μs 雷电冲击电流 Lightning current impulse | 30/60μs 操作冲击电流 Switching current impulse | |||||||

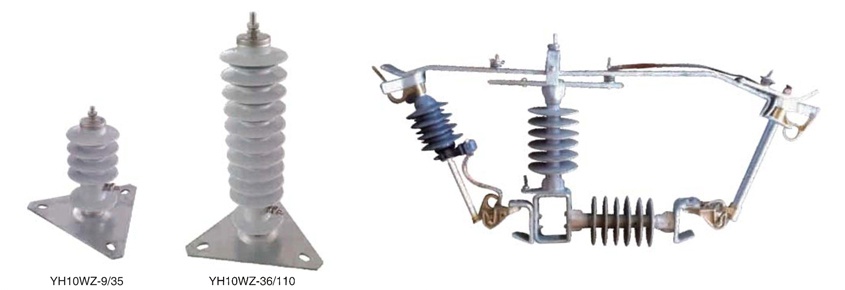

10kA电站 Substation Z) | YH10WZ-9/35 | 9 | 7.65 | 10.5 | 37 | 35 | 30 | 300 | 100 |
YH10WZ-24/67 | 24 | 19.5 | 37 | 75 | 67 | 56 | |||
YH10WZ-36/110 | 36 | 27 | 50 | 115 | 110 | 105 | |||
10kA电站 Substation (Z) | RWYH10WZ-15/41 | 15 | 12.7 | 22.5 | 46.5 | 41 | 35 | ||
RWYH10WZ-24/67 | 15 | 19.5 | 37 | 75 | 67 | 56 |
