YH5WX Line Suspension(With Disconnector)

Inquire NOW HONOR

YH5WX Line Suspension(With Disconnector)

Inquire NOW HONOR

Product Profile

Certificate Center

Product Profile

避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal voltage kV	持续运行电压 MCOV kV	直流(U1mA 参考电压 Direct voltage ≥kV	最大残压kV(峰值) Max residual voltage		操作冲击电流下 Operate current impulse	200μs方波电流(峰值 Rectangula current A	4/10μs冲击电流(峰值) Impulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal voltage kV	持续运行电压 MCOV kV	直流(U1mA 参考电压 Direct voltage ≥kV	陡波冲击电流下 Steep current impulse	雷电冲击电流下 Lighting current mpulse	操作冲击电流下 Operate current impulse	200μs方波电流(峰值 Rectangula current A	4/10μs冲击电流(峰值) Impulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA

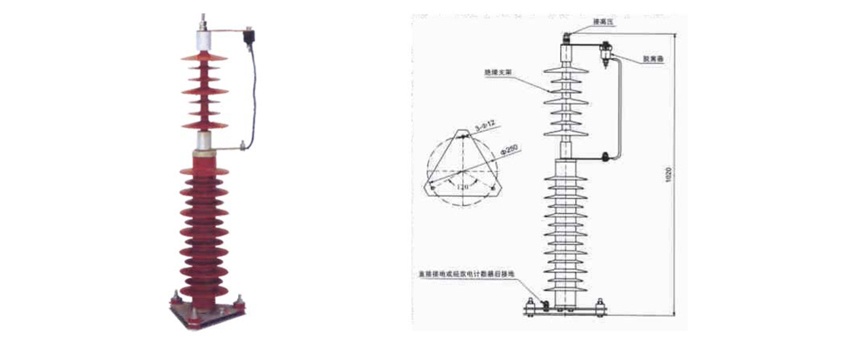

YH5WX1-51/134L	51	35	40.8	73	154	134	114	400	100	50
YH5WX1-54/142L	54	35	43.2	77	163	142	121	400	100	50
YH5WX1-57/170L	57	35	45.6	80	195	170	145	400	100	50

避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal yoltage kV	持续运行电压 MCOV kV	直流(U1mA) 参考电压 Direct voltage ≥kV	最大残压kV(峰值 Max residual voltage		操作冲击电流下 Operate current mpulse	200μs方波电流(峰值 Rectangular current A	4/10μs冲击电流(峰值) mpulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal yoltage kV	持续运行电压 MCOV kV	直流(U1mA) 参考电压 Direct voltage ≥kV	陡波冲击电流下 Steep current impulse	雷电冲击电流下 Lighting current impulse	操作冲击电流下 Operate current mpulse	200μs方波电流(峰值 Rectangular current A	4/10μs冲击电流(峰值) mpulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA

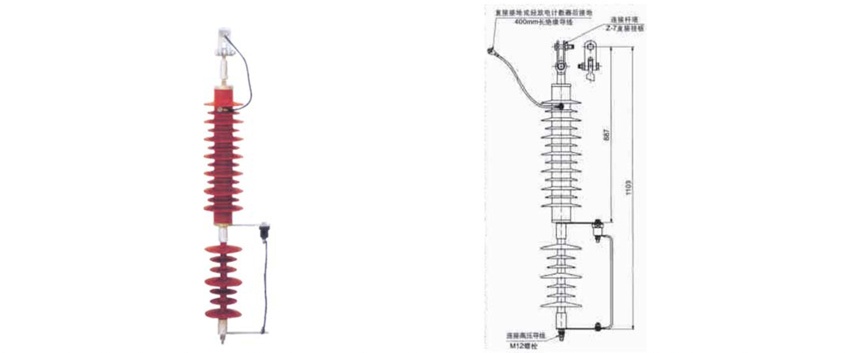

YH5WX2-51/134L	51	35	40.8	73	154	134	114	400	100	50
YH5WX2-54/142L	54	35	43.2	77	163	142	121	400	100	50
YH5WX2-57/170L	57	35	45.6	80	195	170	145	400	100	50

Product Profile

避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal voltage kV	持续运行电压 MCOV kV	直流(U1mA 参考电压 Direct voltage ≥kV	最大残压kV(峰值) Max residual voltage		操作冲击电流下 Operate current impulse	200μs方波电流(峰值 Rectangula current A	4/10μs冲击电流(峰值) Impulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal voltage kV	持续运行电压 MCOV kV	直流(U1mA 参考电压 Direct voltage ≥kV	陡波冲击电流下 Steep current impulse	雷电冲击电流下 Lighting current mpulse	操作冲击电流下 Operate current impulse	200μs方波电流(峰值 Rectangula current A	4/10μs冲击电流(峰值) Impulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
YH5WX1-51/134L	51	35	40.8	73	154	134	114	400	100	50
YH5WX1-54/142L	54	35	43.2	77	163	142	121	400	100	50
YH5WX1-57/170L	57	35	45.6	80	195	170	145	400	100	50

避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal yoltage kV	持续运行电压 MCOV kV	直流(U1mA) 参考电压 Direct voltage ≥kV	最大残压kV(峰值 Max residual voltage		操作冲击电流下 Operate current mpulse	200μs方波电流(峰值 Rectangular current A	4/10μs冲击电流(峰值) mpulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
避雷器型号 MOA type	避雷器额定电压 Arrester rated voltage kV(rms	系统标称电压 Nominal yoltage kV	持续运行电压 MCOV kV	直流(U1mA) 参考电压 Direct voltage ≥kV	陡波冲击电流下 Steep current impulse	雷电冲击电流下 Lighting current impulse	操作冲击电流下 Operate current mpulse	200μs方波电流(峰值 Rectangular current A	4/10μs冲击电流(峰值) mpulse current kA	0.75直流参考电压下最大泄漏电流 Max.LeakAge current μA
YH5WX2-51/134L	51	35	40.8	73	154	134	114	400	100	50
YH5WX2-54/142L	54	35	43.2	77	163	142	121	400	100	50
YH5WX2-57/170L	57	35	45.6	80	195	170	145	400	100	50
