BEIQIANG Power provides professional power products and comprehensive
solutions to ensure the safety of electricity consumption.

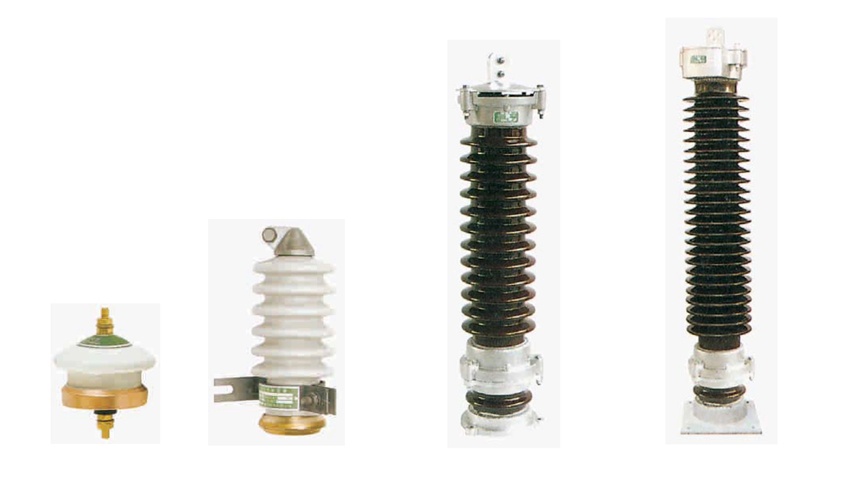

| 避雷器 型号 MOA type | 标称 电压 Nominal voltage kV rms) | 避雷器 额定电压 Moa R.V kV (rms) | 持续 运行电压 MCOV kV (rms) | 直流参 考电压 DC (U1mA) <kV (p) | 标称放电 电流下残压 Nominal residual voltage >kV | 方波通 流容量 Rectangular current mpulse (2ms) A | 重量 Weight | 高度 H mm) | 备注 Remark |
| Y5WS1-3.8/17 | 3 | 3.8 | 2.0 | 7.5 | 17 | 75 | 2.0 | 205 | 配电型 Distrib- ution type |
| Y5WS1-7.6/30 | 6 | 7.6 | 4.0 | 15 | 30 | 75 | 2.4 | 205 | |
| Y5WS1-12.7/50 | 10 | 12.7 | 6.6 | 25 | 50 | 75 | 2.7 | 245 | |
| Y5WS1-5.0/17 | 3 | 5.0 | 3.5 | 7.5 | 17 | 75 | 2.0 | 205 | |
| Y5WS1-10/30 | 6 | 10 | 7.0 | 15 | 30 | 75 | 2.2 | 205 | |
| Y5WS1-17/50 | 10 | 17 | 11.5 | 25 | 50 | 75 | 2.7 | 245 | |
| Y5WZ1-3.8/17 | 3 | 3.8 | 2.0 | 7.2 | 13.5 | 150 | 2.0 | 205 | 电站型 Power station type |
| Y5WZ1-7.6/27 | 6 | 7.6 | 4.0 | 14.4 | 27 | 150 | 2.2 | 205 | |
| Y5WZ1-12.7/45 | 10 | 12.7 | 6.6 | 24 | 45 | 150 | 3.0 | 245 | |
| Y5WZ1-42/134 | 35 | 42 | 23.4 | 73 | 134 | 400 | 25 | ||
| Y5WZ1-5.0/13.5 | 3 | 5.0 | 3.5 | 7.2 | 13.5 | 150 | 2.0 | 205 | |
| Y5WZ1-10/27 | 6 | 10 | 7.0 | 14.4 | 27 | 150 | 2.2 | 205 | |
| Y5WZ1-17/45 | 10 | 17 | 11.5 | 24 | 45 | 150 | 3.0 | 245 | |
| Y5WZ1-51/134 | 35 | 51 | 40 | 73 | 134 | 400 | 25 |
