技术参数表Main technical parameters
型号 Type | 系统 电压 Rated voltage (kV) | 额定机械 拉伸负荷 Rated mechanical tensionload (kN) | 连接 标记 结构 Structure of coupling marks | 结构 高度 H Structure height (mm) | 最小电 弧距离h Min Electricarc distance (mm) | 最小公称 爬电距离 Minnomina creepage distance (mm) | 雷电全波冲击 耐受电压(峰值) 不小于 Full wave lightning mpulse withstand voltage(peak value) not less than (kV) | 工频1min湿耐 受电压(有效值 不小于 1min power frequency wet withstand voltage not less than (kV) |
FXBW4-10/70 | 10 | 70 | 16 | 310±15 | 170 | 400 | 75 | 38 |
FXBW4-10/70 | 10 | 70 | 16 | 350±15 | 210 | 500 | 95 | 42 |
FXBW4-10/120(100) | 10 | 120(100 | 16 | 410±15 | 210 | 500 | 95 | 42 |
FXBW4-20/70 | 20 | 70 | 16 | 440±15 | 313 | 800 | 170 | 75 |
FXBW4-20/120(100) | 20 | 120(100) | 16 | 460±15 | 313 | 800 | 170 | 75 |
FXBW4-35/70 | 35 | 70 | 16 | 670±15 | 493 | 1350 | 230 | 95 |
FXBW4-35/120(100) | 35 | 120(100) | 16 | 670±15 | 460 | 1300 | 230 | 95 |
FXBW4-66/70 | 66 | 70 | 16 | 820±15 | 655 | 1920 | 410 | 185 |
FXBW4-66/120(100) | 66 | 120(100) | 16 | 840±15 | 655 | 1920 | 410 | 185 |
FXBW5-66/70 | 66 | 70 | 16 | 870±15 | 700 | 2070 | 410 | 185 |
FXBW5-66/70 | 66 | 70 | 16 | 940±15 | 774 | 2280 | 410 | 185 |
FXBW5-66/120(100) | 66 | 120(100) | 16 | 870±15 | 663 | 1930 | 410 | 185 |
FXBW5-66/120(100) | 66 | 120(100) | 16 | 940±15 | 737 | 2170 | 410 | 185 |
FXBW4-110/120(100 | 110 | 120(100) | 16 | 1240±15 | 1032 | 3400 | 550 | 230 |
FXBW4-110/120(100) | 110 | 120(100) | 16 | 1440±15 | 1257 | 4200 | 550 | 230 |
FXBW5-110/70 | 110 | 70 | 16 | 1240±15 | 1070 | 3250 | 550 | 230 |
FXBW5-110/70 | 110 | 70 | 16 | 1440±15 | 1292 | 3800 | 550 | 230 |
FXBW5-110/120(100) | 110 | 120(100) | 16 | 1240±15 | 1033 | 3150 | 550 | 230 |
FXBW5-110/120(100) | 110 | 120(100) | 16 | 1440±15 | 1255 | 3700 | 550 | 230 |
FXBW5-110/210(160) | 110 | 210(160) | 20 | 1340±15 | 1050 | 3280 | 550 | 230 |
FXBW5-110/210(160) | 110 | 210(160 | 20 | 1440±15 | 1164 | 3660 | 550 | 230 |
FXBW4-220/120(100) | 220 | 120(100) | 16 | 2150±30 | 1930 | 6500 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2150±30 | 1958 | 6130 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2240±30 | 2032 | 6340 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2350±30 | 2143 | 6700 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2470±30 | 2254 | 7050 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2240±30 | 1962 | 6300 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2350±30 | 2076 | 6680 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2470±30 | 2190 | 7050 | 1000 | 395 |
FXBW5-330/210(160) | 330 | 210(160) | 20 | 2930±40 | 2646 | 8500 | 1425 | 570 |
FXBW5-330/210(160) | 330 | 210(160) | 20 | 3150±40 | 2874 | 9300 | 1425 | 570 |
FXBW5-330/210(160) | 330 | 210(160 | 20 | 3350±40 | 3102 | 10000 | 1425 | 570 |
FXBW5-550/210(160) | 550 | 210(160 | 20 | 4050±50 | 3786 | 12300 | 2050 | 740 |
FXBW5-550/210(160) | 550 | 210(160) | 20 | 4450±50 | 4204 | 13750 | 2250 | 740 |
FXBW5-550/210(160) | 550 | 210(160) | 20 | 4900±50 | 4660 | 15200 | 2250 | 740 |
Ordering instructions: 1. The default fittings at both ends of the suspension insulator are ball-head and ball-socket structures. If there is a difference, please indicate the type. Please check the terminal fittings table for the specific code.
技术参数表 Main technical parameters
型号 Type | 加强筋 特大伞径 XL shed diameter (mm) | 系统 电压 System yoltage (kV) | 额定机械 负荷 Rated mechanical load (kN) | 连接标 记结构 Structure of coupling marks | 结构 高度 H Structure height (mm) | 绝缘 距离 H insulating distance mm) | 最小公称 爬电距离 Minnominal creepage distance mm) | 雷电全波冲击 耐受电压(峰值) 不小于 Full wave lightning impulse withstand voltage(peak value) not less than (kV) | 工频1min湿耐 受电压(有效值) 不小于 1min power frequency wet withstand voltage not less than (kV) | |
FXBW5-35/70TDI | 250 | 35 | 70 | 16 | 630±15 | 480 | 1400 | 230 | 95 | |
FXBW5-35/100TDI | 250 | 35 | 120 | 16 | 670±15 | 480 | 1400 | 230 | 95 | |
FXBW5-66/70TDI | 250 | 66 | 70 | 16 | 870±15 | 702 | 2200 | 410 | 185 | |
FXBW5-66/100TDI | 250 | 66 | 120 | 16 | 870±15 | 665 | 2100 | 410 | 185 | |
FXBW5-110/70TDI | 250 | 110 | 70 | 16 | 1240±15 | 1070 | 3400 | 550 | 230 | |
FXBW5-110/120TDI | 250 | 110 | 120 | 16 | 1240±15 | 1035 | 3300 | 550 | 230 | |
FXBW5-220/120TDI | 250 | 220 | 120 | 16 | 2240±15 | 2034 | 6600 | 1000 | 395 | |
FXBW5-220/210TDI | 250 | 220 | 210 | 20 | 2240±30 | 1905 | 6400 | 1000 | 395 | |
FXBW5-330/120TDI | 250 | 330 | 120 | 16 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/160TDI | 250 | 330 | 160 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/210TDI | 250 | 330 | 210 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-110/70TDII | 300 | 110 | 70 | 16 | 1240±15 | 1070 | 3400 | 550 | 230 | |
FXBW5-110/120TDII | 300 | 110 | 120 | 16 | 1240±15 | 1035 | 3300 | 550 | 230 | |
FXBW5-220/120TDI | 300 | 220 | 120 | 16 | 2240±30 | 2034 | 6600 | 1000 | 395 | |
FXBW5-220/210TDI | 300 | 220 | 210 | 20 | 2240±30 | 1900 | 6500 | 1000 | 395 | |
FXBW5-330/100TDII | 300 | 330 | 100 | 16 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/160TDII | 300 | 330 | 160 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/210TDII | 300 | 330 | 210 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 |
技术参数表 Main technical parameters
型号 Type | 加强筋特大伞径 XL shed diameter(mm) | 增加爬电距离(mm) Increasing Creepage distance | ||||||||
FXBW-□/□TD I | 250 | 100 | ||||||||
FXBW-□/□TDⅡ | 300 | 150 | ||||||||
FXBW-□/□TDIII | 400 | 250 |

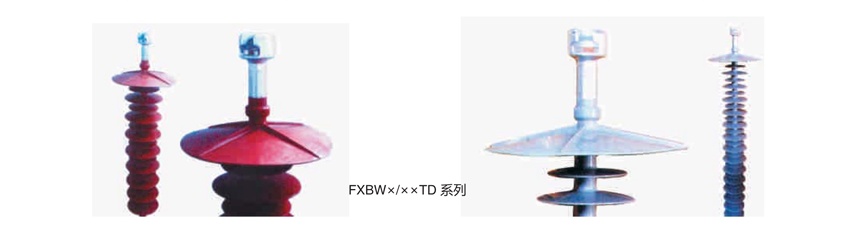

注:产品型号后加字母TD 代表绝缘子第一片采用加强型特大伞,产品结构高度和绝缘距离与原有型号相同,电气性能优于原参数。型号后附加的罗马字母代表不同直
径的伞型, I:φ250,Ⅱ:φ300,Ⅲ:φ400。
Note:the model with TD represents the first piece of insulator shed adopt the reinforced XL shed,the structure height and insulation distance is the same with the
original model of products,but the electric performance is superior than before,and the "IⅡ Ⅲ"represents the sheds of different diameters.
技术参数表Main technical parameters
型号 Type | 系统 电压 Rated voltage (kV) | 额定机械 拉伸负荷 Rated mechanical tensionload (kN) | 连接 标记 结构 Structure of coupling marks | 结构 高度 H Structure height (mm) | 最小电 弧距离h Min Electricarc distance (mm) | 最小公称 爬电距离 Minnomina creepage distance (mm) | 雷电全波冲击 耐受电压(峰值) 不小于 Full wave lightning mpulse withstand voltage(peak value) not less than (kV) | 工频1min湿耐 受电压(有效值 不小于 1min power frequency wet withstand voltage not less than (kV) |
FXBW4-10/70 | 10 | 70 | 16 | 310±15 | 170 | 400 | 75 | 38 |
FXBW4-10/70 | 10 | 70 | 16 | 350±15 | 210 | 500 | 95 | 42 |
FXBW4-10/120(100) | 10 | 120(100 | 16 | 410±15 | 210 | 500 | 95 | 42 |
FXBW4-20/70 | 20 | 70 | 16 | 440±15 | 313 | 800 | 170 | 75 |
FXBW4-20/120(100) | 20 | 120(100) | 16 | 460±15 | 313 | 800 | 170 | 75 |
FXBW4-35/70 | 35 | 70 | 16 | 670±15 | 493 | 1350 | 230 | 95 |
FXBW4-35/120(100) | 35 | 120(100) | 16 | 670±15 | 460 | 1300 | 230 | 95 |
FXBW4-66/70 | 66 | 70 | 16 | 820±15 | 655 | 1920 | 410 | 185 |
FXBW4-66/120(100) | 66 | 120(100) | 16 | 840±15 | 655 | 1920 | 410 | 185 |
FXBW5-66/70 | 66 | 70 | 16 | 870±15 | 700 | 2070 | 410 | 185 |
FXBW5-66/70 | 66 | 70 | 16 | 940±15 | 774 | 2280 | 410 | 185 |
FXBW5-66/120(100) | 66 | 120(100) | 16 | 870±15 | 663 | 1930 | 410 | 185 |
FXBW5-66/120(100) | 66 | 120(100) | 16 | 940±15 | 737 | 2170 | 410 | 185 |
FXBW4-110/120(100 | 110 | 120(100) | 16 | 1240±15 | 1032 | 3400 | 550 | 230 |
FXBW4-110/120(100) | 110 | 120(100) | 16 | 1440±15 | 1257 | 4200 | 550 | 230 |
FXBW5-110/70 | 110 | 70 | 16 | 1240±15 | 1070 | 3250 | 550 | 230 |
FXBW5-110/70 | 110 | 70 | 16 | 1440±15 | 1292 | 3800 | 550 | 230 |
FXBW5-110/120(100) | 110 | 120(100) | 16 | 1240±15 | 1033 | 3150 | 550 | 230 |
FXBW5-110/120(100) | 110 | 120(100) | 16 | 1440±15 | 1255 | 3700 | 550 | 230 |
FXBW5-110/210(160) | 110 | 210(160) | 20 | 1340±15 | 1050 | 3280 | 550 | 230 |
FXBW5-110/210(160) | 110 | 210(160 | 20 | 1440±15 | 1164 | 3660 | 550 | 230 |
FXBW4-220/120(100) | 220 | 120(100) | 16 | 2150±30 | 1930 | 6500 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2150±30 | 1958 | 6130 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2240±30 | 2032 | 6340 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2350±30 | 2143 | 6700 | 1000 | 395 |
FXBW5-220/120(100) | 220 | 120(100) | 16 | 2470±30 | 2254 | 7050 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2240±30 | 1962 | 6300 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2350±30 | 2076 | 6680 | 1000 | 395 |
FXBW5-220/210(160) | 220 | 210(160) | 20 | 2470±30 | 2190 | 7050 | 1000 | 395 |
FXBW5-330/210(160) | 330 | 210(160) | 20 | 2930±40 | 2646 | 8500 | 1425 | 570 |
FXBW5-330/210(160) | 330 | 210(160) | 20 | 3150±40 | 2874 | 9300 | 1425 | 570 |
FXBW5-330/210(160) | 330 | 210(160 | 20 | 3350±40 | 3102 | 10000 | 1425 | 570 |
FXBW5-550/210(160) | 550 | 210(160 | 20 | 4050±50 | 3786 | 12300 | 2050 | 740 |
FXBW5-550/210(160) | 550 | 210(160) | 20 | 4450±50 | 4204 | 13750 | 2250 | 740 |
FXBW5-550/210(160) | 550 | 210(160) | 20 | 4900±50 | 4660 | 15200 | 2250 | 740 |
Ordering instructions: 1. The default fittings at both ends of the suspension insulator are ball-head and ball-socket structures. If there is a difference, please indicate the type. Please check the terminal fittings table for the specific code.
技术参数表 Main technical parameters
型号 Type | 加强筋 特大伞径 XL shed diameter (mm) | 系统 电压 System yoltage (kV) | 额定机械 负荷 Rated mechanical load (kN) | 连接标 记结构 Structure of coupling marks | 结构 高度 H Structure height (mm) | 绝缘 距离 H insulating distance mm) | 最小公称 爬电距离 Minnominal creepage distance mm) | 雷电全波冲击 耐受电压(峰值) 不小于 Full wave lightning impulse withstand voltage(peak value) not less than (kV) | 工频1min湿耐 受电压(有效值) 不小于 1min power frequency wet withstand voltage not less than (kV) | |
FXBW5-35/70TDI | 250 | 35 | 70 | 16 | 630±15 | 480 | 1400 | 230 | 95 | |
FXBW5-35/100TDI | 250 | 35 | 120 | 16 | 670±15 | 480 | 1400 | 230 | 95 | |
FXBW5-66/70TDI | 250 | 66 | 70 | 16 | 870±15 | 702 | 2200 | 410 | 185 | |
FXBW5-66/100TDI | 250 | 66 | 120 | 16 | 870±15 | 665 | 2100 | 410 | 185 | |
FXBW5-110/70TDI | 250 | 110 | 70 | 16 | 1240±15 | 1070 | 3400 | 550 | 230 | |
FXBW5-110/120TDI | 250 | 110 | 120 | 16 | 1240±15 | 1035 | 3300 | 550 | 230 | |
FXBW5-220/120TDI | 250 | 220 | 120 | 16 | 2240±15 | 2034 | 6600 | 1000 | 395 | |
FXBW5-220/210TDI | 250 | 220 | 210 | 20 | 2240±30 | 1905 | 6400 | 1000 | 395 | |
FXBW5-330/120TDI | 250 | 330 | 120 | 16 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/160TDI | 250 | 330 | 160 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/210TDI | 250 | 330 | 210 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-110/70TDII | 300 | 110 | 70 | 16 | 1240±15 | 1070 | 3400 | 550 | 230 | |
FXBW5-110/120TDII | 300 | 110 | 120 | 16 | 1240±15 | 1035 | 3300 | 550 | 230 | |
FXBW5-220/120TDI | 300 | 220 | 120 | 16 | 2240±30 | 2034 | 6600 | 1000 | 395 | |
FXBW5-220/210TDI | 300 | 220 | 210 | 20 | 2240±30 | 1900 | 6500 | 1000 | 395 | |
FXBW5-330/100TDII | 300 | 330 | 100 | 16 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/160TDII | 300 | 330 | 160 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 | |
FXBW5-330/210TDII | 300 | 330 | 210 | 20 | 2990±40 | 2600 | 9600 | 1425 | 570 |
技术参数表 Main technical parameters
型号 Type | 加强筋特大伞径 XL shed diameter(mm) | 增加爬电距离(mm) Increasing Creepage distance | ||||||||
FXBW-□/□TD I | 250 | 100 | ||||||||
FXBW-□/□TDⅡ | 300 | 150 | ||||||||
FXBW-□/□TDIII | 400 | 250 |
注:产品型号后加字母TD 代表绝缘子第一片采用加强型特大伞,产品结构高度和绝缘距离与原有型号相同,电气性能优于原参数。型号后附加的罗马字母代表不同直
径的伞型, I:φ250,Ⅱ:φ300,Ⅲ:φ400。
Note:the model with TD represents the first piece of insulator shed adopt the reinforced XL shed,the structure height and insulation distance is the same with the
original model of products,but the electric performance is superior than before,and the "IⅡ Ⅲ"represents the sheds of different diameters.
