概述General
复合耐张绝缘子适用于污秽地区，尤其在重污秽地区使用，其抗张强度高，防污性能好，安装使用方便等，采用各种金具联结结构，与线路
金具连接紧凑。
The composite tension insulator is suitable for the polluted area,especially for the severe pollution area,featured with high tensile strength,perfect antipollution performance,convenient operation and installation.It adopts various fiting coupling structure,very compact in connectionwith the line fitting

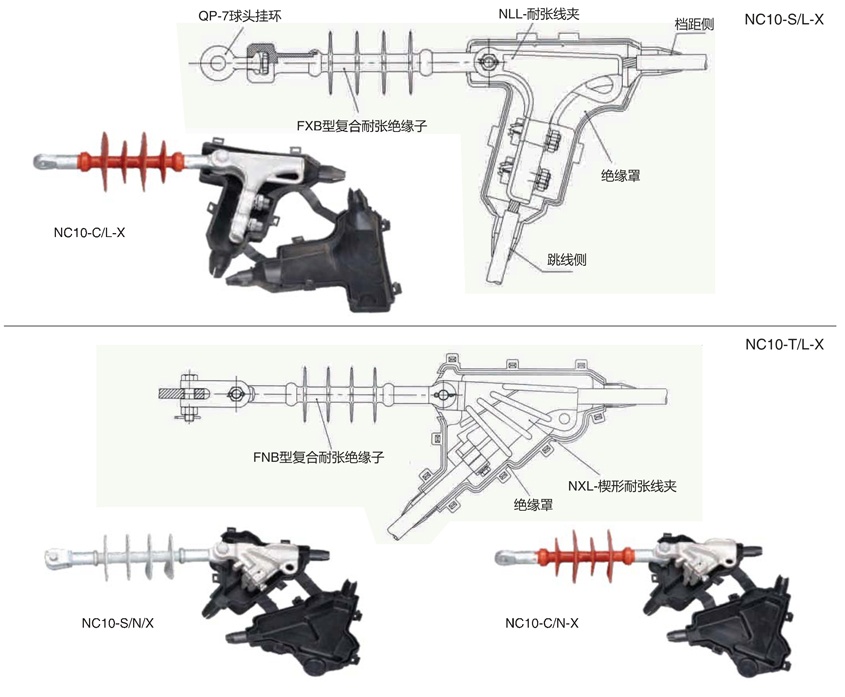

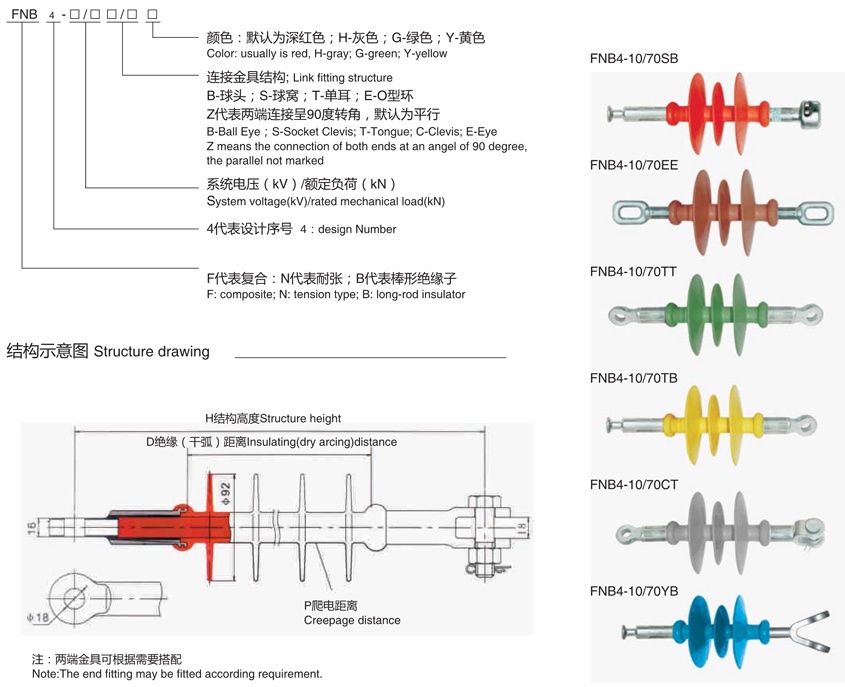

产品型号说明Mode Description
技术参数表 Main technical parameters
| 规格型号 Spec&Type | 系统 电压(kV) Rated voltage | 额定机械 拉伸负荷(kN) Rated mechanical tensionload | 结构 高度H Structure height (mm) | 最小电 弧距离h (mm Min arc distance | 最小公称 爬电距离(mm) Minnominal Creepage distance | 雷电全波冲击 耐受电压 Full wave lightning impulse withstand voltage (kV) | 工频1min湿 耐受电压(kV) 1min power frequency wet withstand voltage | ||||||||
| FNB4-1/70-XX | 1～3 | 70 | 260±10 | 80 | 225 | 45 | 18 | ||||||||
| FNB4-6/70-XX | 6 | 70 | 300±10 | 120 | 325 | 60 | 25 | ||||||||
| FNB4-10/40-XX | 10 | 40 | 320±10 | 160 | 425 | 95 | 45 | ||||||||
| FNB4-10/70-XX | 10 | 70 | 340±10 | 160 | 425 | 95 | 45 | ||||||||
| FNB4-10/100-XX | 10 | 100 | 370±10 | 160 | 425 | 95 | 45 | ||||||||
| FNB4-15/70-XX | 15 | 70 | 380±10 | 200 | 525 | 115 | 60 | ||||||||
| FNB4-20/70-XX | 20 | 70 | 420±10 | 240 | 625 | 150 | 65 | ||||||||
| FNB4-20/100-XX | 20 | 100 | 450±10 | 240 | 625 | 150 | 65 | ||||||||
| FNB4-24/70-XX | 24 | 70 | 460±10 | 280 | 725 | 170 | 75 | ||||||||
| FNB4-24/100-XX | 24 | 100 | 490±10 | 280 | 725 | 170 | 75 | ||||||||
| FNB4-28/70-XX | 28 | 70 | 500±10 | 320 | 825 | 190 | 85 | ||||||||
| FNB4-33/70-XX | 33 | 70 | 540±10 | 360 | 925 | 205 | 90 | ||||||||
| FNB4-35/70-XX | 35 | 70 | 610±10 | 420 | 1050 | 230 | 95 | ||||||||
| FNB4-35/100-XX | 35 | 100 | 640±10 | 420 | 1050 | 230 | 95 | ||||||||
两端连接金具种类表 Table of end fitting type
| 附加字母表-XX Adding the letters | SB | ST | SC | BB | CT | TT | CC | CE | EE | ||||||
| 代表金具 Representing the fitting | 球窝-球头 Socket clevis -Ball eye | 球窝-单耳 Socket clevis -Tongue | 球窝-双耳 Socket clevis -Clevis | 球头-球头 Ball eye -Ball eye | 单耳-双耳 Tongue -Clevis | 单耳-单耳 Tongue -Tongue | 双耳-双耳 Clevis Clevis | 双耳-环型 Clevis -Eye | 环型-环型 | ||||||
| 连接标记 Link mark | 16-16 | 16-16N | 16-16N | 16-16 | 16N-16N | 16N-16N | 16N-16N | 16N-17 | 17-17 | ||||||
订货须知：
1.请根据两端要求的金具在型号中注明附加字母：2、可根据用户的要求制定和搭配两端金具：3、硅橡胶颜色默认为红色，也可以选择灰、绿、黄、兰、黑等颜色。
Notice for order:
1.The model offiting should be added with additional letters according to the requirements of the ends;
2.The end fittings should be designed and ftted according to customer's requirement;3.The silicon rubber is usually red color,gray,green,yellow,blue,black can
be selectable.
订货须知Order notice
1、默认的悬式绝缘子两端金具为球头球窝结构，如有不同请注明类型；
2、均压环可改善电压分布，同时在闪络时通过环对地放电，可起到保护伞套不被电弧灼的作用，而缓解带电端伞套的老化，一般情况下，110kV以下电压等级产品不带均压环；110kV的产品高压端带一个均压环，但在多雷区建议两端配均压环；220kV及以上电压等级产品高压端和接地端各带一个均压环。请在订货时注明均压环的配法。
3、根据实际环境需要，为防止积雪、冰凌、鸟害等对复合绝缘子的影响，容易造成绝缘子闪络，而开发出特大伞型结构的绝缘子，在实际运行中，取得了明显的效果。
1、The default structure of hardware at both ends of the suspension insulator is ball-end and-socket,please notify the type on different demands;
2、The grading ring can improve the voltage distribution and meanwhile discharge to earth when the flashover is passing through to protect theshed from being burnt by the electric arc and thus release the aging of shed at the live end.Generally,products with the voltage grade of66kV or under are not provided with grading rings;and for 110kV,1 grading ring is provided while it is recommended to equip two rings atthe both ends in areas where lightening is quite often;At the high voltage end and earthing end of products with voltage grade of 220kV orover,1 grading ring is provided at both ends.Please indicate the arrangement of the grading ring when putting the order.
3、The company has taken the actual environmental needs in to account and developed ultra large shed insulator flashover to prevent thecomposite insulator from being affected by snow,ice edges and bird damage etc.and avoid the insulation caused,Evident effects have beenmade in the actual operation.
