用途Application
本产品适用于电站设施。具有良好的憎水性、抗老化性、耐漏电起痕性和耐电蚀损性，具有很高的抗扭强度和抗弯强度，其机械强度高，抗冲击性能、防震和防脆断性能好，防污能力高，抗冲击性能优越，体积小，重量轻、安装方便，其顶部和地步安装尺寸与相应的瓷支柱安装尺寸相同，可以互换使用，且免维护、不需人工清扫，可与瓷等绝缘子互换使用。

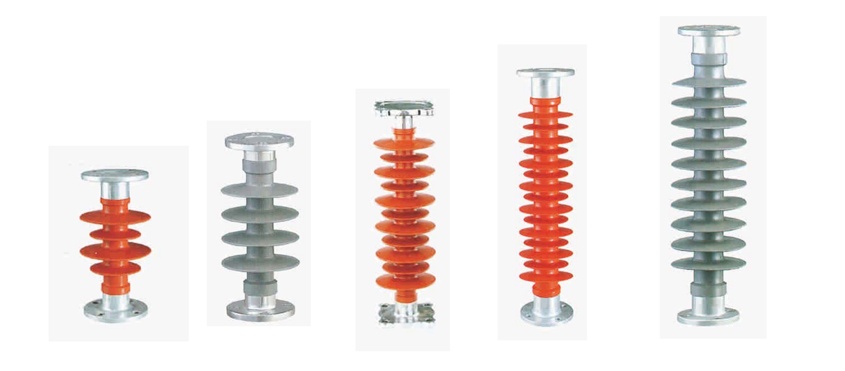

The product is applicable for power plant installation with good performances in hydrophobicity,aging resistance,creep age tracking resistance,electrical erosion resistance and high tensional strength and bending strength.The product is high in mechanical strength,outstanding in shockresistance,quakeproof resistance and brittle fracture resistance.Also the product is light in weight and easy for installation.The installationdimensions are of the same with those of corresponding porcelain pin insulator and communicable with porcelain.The product is free frommaintenance and manual cleaning.
技术参数表 Main technical parameters
| 规格型号 Spec&Type | 额定 电压(kV) Rated voltage | 额定机械 拉伸负荷(kN Rated mechanical tensionload | 额定扭转 负荷 Rated reverse load (kNm) | 结构 高度H Structure height (mm) | 最小公称 配电距离(mm Minnominal creepage distance | 雷电全波冲击 耐受电压 Full wave lightning mpulse withstand voltage (kV) | 工频1min湿 耐受电压(kV) 1min power frequency wet withstand voltage |
| FZSW-12/5 | 12 | 5 | 0.5 | 215 | 300 | 75 | 42 |
| FZSW-24/8 | 24 | 8 | 1.2 | 380 | 680 | 170 | 65 |
| FZSW-40.5/6 | 40.5 | 6 | 1.2 | 475 | 900 | 230 | 95 |
| FZSW-72.5/8 | 72.5 | 8 | 2 | 760 | 1800 | 410 | 185 |
| FZSW-126/10 | 126 | 10 | 3 | 1240 | 3930 | 550 | 230 |
| FZSW-252/5 | 252 | 5 | 3 | 2100 | 7200 | 1000 | 395 |
订 货 须 知 Order Notice
在订货时须指明产品的规格、型号、数量。需指明安装孔的大小及尺寸。
Specifications,models and amounts of the products shall be indicated when putting the order.
The size and dimension of the installation holeshall be indicated.
用途Application
本产品适用于电站设施。具有良好的憎水性、抗老化性、耐漏电起痕性和耐电蚀损性，具有很高的抗扭强度和抗弯强度，其机械强度高，抗冲击性能、防震和防脆断性能好，防污能力高，抗冲击性能优越，体积小，重量轻、安装方便，其顶部和地步安装尺寸与相应的瓷支柱安装尺寸相同，可以互换使用，且免维护、不需人工清扫，可与瓷等绝缘子互换使用。
The product is applicable for power plant installation with good performances in hydrophobicity,aging resistance,creep age tracking resistance,electrical erosion resistance and high tensional strength and bending strength.The product is high in mechanical strength,outstanding in shockresistance,quakeproof resistance and brittle fracture resistance.Also the product is light in weight and easy for installation.The installationdimensions are of the same with those of corresponding porcelain pin insulator and communicable with porcelain.The product is free frommaintenance and manual cleaning.
技术参数表 Main technical parameters
| 规格型号 Spec&Type | 额定 电压(kV) Rated voltage | 额定机械 拉伸负荷(kN Rated mechanical tensionload | 额定扭转 负荷 Rated reverse load (kNm) | 结构 高度H Structure height (mm) | 最小公称 配电距离(mm Minnominal creepage distance | 雷电全波冲击 耐受电压 Full wave lightning mpulse withstand voltage (kV) | 工频1min湿 耐受电压(kV) 1min power frequency wet withstand voltage |
| FZSW-12/5 | 12 | 5 | 0.5 | 215 | 300 | 75 | 42 |
| FZSW-24/8 | 24 | 8 | 1.2 | 380 | 680 | 170 | 65 |
| FZSW-40.5/6 | 40.5 | 6 | 1.2 | 475 | 900 | 230 | 95 |
| FZSW-72.5/8 | 72.5 | 8 | 2 | 760 | 1800 | 410 | 185 |
| FZSW-126/10 | 126 | 10 | 3 | 1240 | 3930 | 550 | 230 |
| FZSW-252/5 | 252 | 5 | 3 | 2100 | 7200 | 1000 | 395 |
订 货 须 知 Order Notice
在订货时须指明产品的规格、型号、数量。需指明安装孔的大小及尺寸。
Specifications,models and amounts of the products shall be indicated when putting the order.
The size and dimension of the installation holeshall be indicated.
