概述General

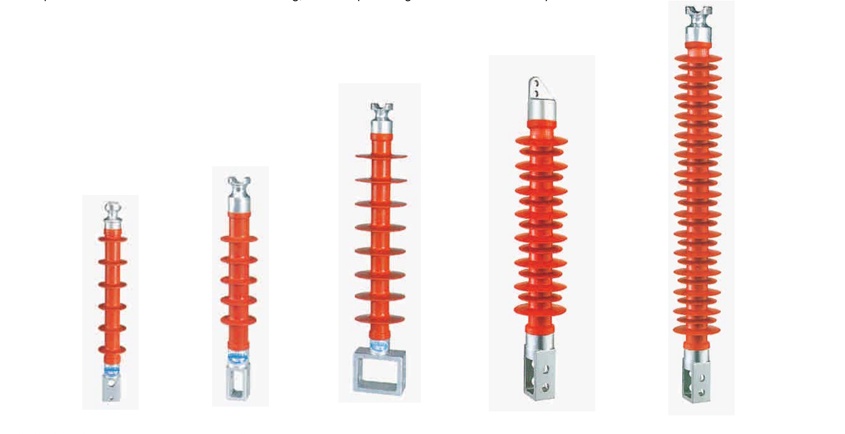

复合横担绝缘子能有效地利用狭窄的走廊面积、并压送电，适用于城网技术改造，能降低杆塔高度，可节约大量的人力、物力和财力，由于其弯曲强度高，可防止瓷横担容易出现的断裂事故，是瓷横担所无法替代的产品；体积小，重量轻，防震、抗冲击能力强、不需人工清扫，为安全运行提供保障。

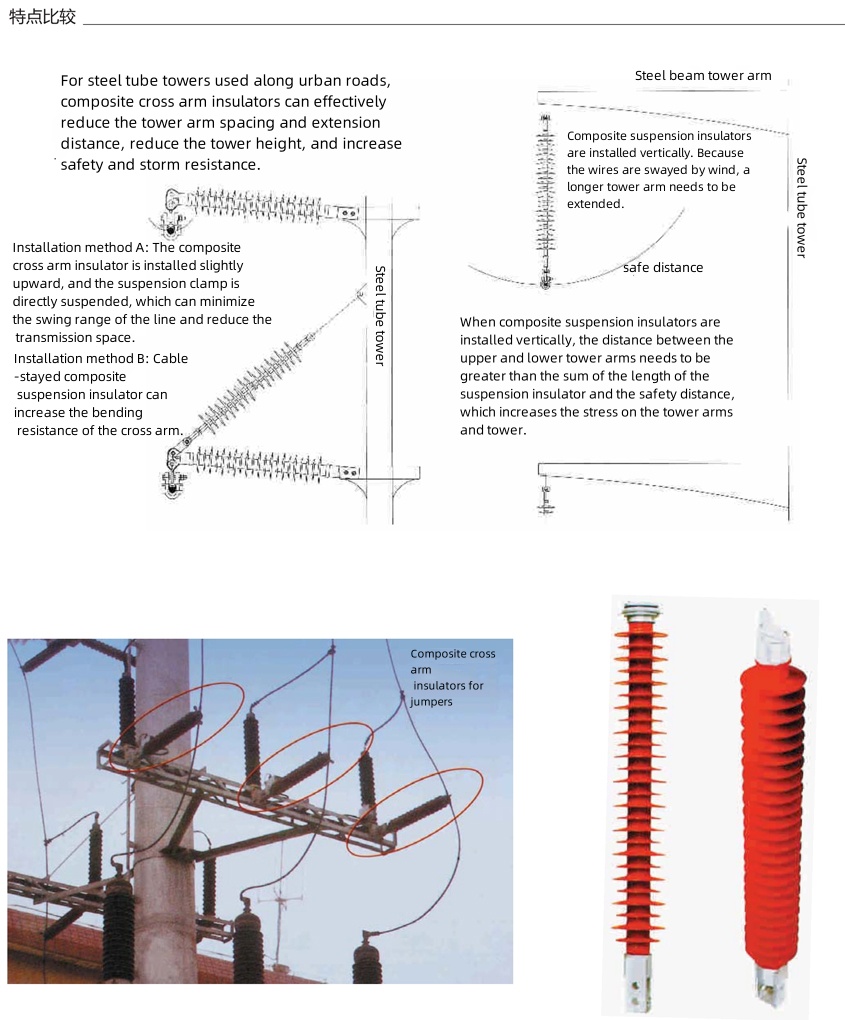

These product are applicable to urban power network reconstruction where streets are narrow.It can take advange of urban narrow powerdistribution corridor,lower the necessary height of pole or tower.With high bending strength,they can avoid rupture accident taken place forporcelain insulators.Moreover,they are of good pollution resistance.The product is light in volume and weight and strong in quake proof andanti-impact abilities and free from manual cleaning;and can provide guarantee for the safe operation.
技术参数表 Main technical parameters
| 规格型号 Spec&Type | 系统 电压(kV) System voltage | 额定弯曲 负荷kN Rated bending load | 结构 高度H Structure height (mm) | 最小电 弧距离h (mm) Min arc distance | 最小公称 肥电距离(mm Minnominal creepage distance | 雷电全波冲击 耐受电压 Full wave lightning impulse withstand voltage (kV) | 工频1min湿 耐受电压(kV) 1min power frequency wet withstand voltage |
| FS-10/5 | 10 | 5 | 270 | 168 | 320 | 75 | 42 |
| FS-10/4 | 10 | 4 | 350 | 248 | 470 | 145 | 60 |
| FSW-20/8 | 20 | 8 | 485 | 380 | 680 | 170 | 70 |
| FS-35/5 | 35 | 5 | 620 | 490 | 1200 | 265 | 100 |
| FSW-35/5D | 35 | 5 | 590 | 476 | 1150 | 230 | 95 |
| FSW-35/10 | 35 | 10 | 620 | 480 | 1260 | 230 | 95 |
| FSW-66/8 | 66 | 8 | 800 | 663 | 1800 | 410 | 185 |
| FSW-66/12.5 | 66 | 12.5 | 830 | 621 | 2100 | 410 | 185 |
| FSW-110/10 | 110 | 10 | 1294 | 1092 | 3930 | 550 | 230 |
| FSW-110/5 | 110 | 5 | 1270 | 1050 | 3150 | 550 | 230 |
订货须知：1、如用户需要不同的端头金具、安装尺寸请另注明。
Order Notice:1.If custom need different top end fitting,please inform us firstly.
