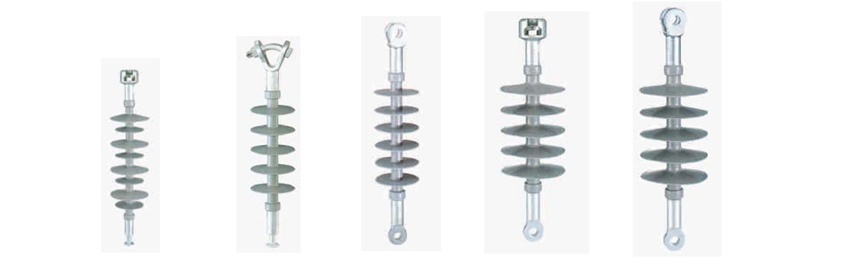

技术参数表 Main technical parameters
| 型号 Type | 额定 电压 Rated voltage (kV) | 额定机械 负荷 Rated mechanical load (kN) | 结构 高度 H(mm) Structure height (mm | 绝缘距离 H insulating distance (mm) |  最小公称爬电距离 Min nominal c e (mm) | 伞径 Diameter of shed (mm) | 工频1min湿耐 受电压(有效值 1min power frequency wet withstand voltage (kV) | 标准雷电全波冲击 冲击耐受电压 Full wave lightning impulse withstand voltage (kV | 伞数 Umbrella (a number) |
| FXB-12/70CT | 12 | 70 | 370±15 | 210 | 480 | φ99 | 42 | 95 | 4 |
| FXB-24/70CT | 24 | 70 | 464±15 | 304 | 700 | φ99 | 60 | 145 | 6 |
| FXB-36/70CT | 36 | 70 | 558±15 | 398 | 940 | φ99 | 95 | 200 | 8 |
| FXB1-12/70CT | 12 | 70 | 356±15 | 183 | 450 | φ99 | 42 | 95 | 4 |
| FXB1-24/70CT | 24 | 70 | 464±15 | 269 | 680 | φ99 | 60 | 145 | 6 |
| FXB1-36/70CT | 36 | 70 | 558±15 | 371 | 900 | φ99 | 95 | 200 | 8 |
| FXBW-12/70CT | 12 | 70 | 330±15 | 170 | 400 | φ124/φ90 | 42 | 95 | 3 |
| FXBW-12/70SB | 12 | 70 | 310±15 | 170 | 400 | φ124/φ90 | 42 | 95 | 3 |
| FXBW-12/70EE | 12 | 70 | 370±15 | 170 | 400 | φ124/φ90 | 42 | 95 | 3 |
| FXBW-24/70CT | 24 | 70 | 440±15 | 280 | 770 | φ148/φ113 | 42 | 95 | 5 |
| FXBW-24/70SB | 24 | 70 | 425±15 | 280 | 770 | φ148/φ113 | 42 | 95 | 5 |
| FXBW-24/70EE | 24 | 70 | 480±15 | 280 | 770 | φ148/φ113 | 42 | 95 | 5 |
| FXBW-36/70CT | 36 | 530±15 | 370 | 1015 | φ148/φ113 | 95 | 200 | 7 | |
| FXBW-36/70SB | 36 | 70 | 515±15 | 370 | 1015 | φ148/φ113 | 95 | 200 | 7 |
| FXBW-36/70EE | 36 | 70 | 570±15 | 370 | 1015 | φ148/φ113 | 95 | 200 | 7 |
| FXBW-36/70CT | 36 | 70 | 620±15 | 460 | 1300 | φ148/φ113 | 110 | 250 | 9 |
| FXBW-36/70SB | 36 | 70 | 620±15 | 460 | 1300 | φ148/φ113 | 110 | 250 | 9 |
| FXBW-36/70EE | 36 | 70 | 660±15 | 460 | 1300 | φ148/φ113 | 110 | 250 | 9 |
| CS70YT-170/1015 | 36 | 70 | 465±15 | 325 | 1015 | φ120 | 70 | 170 | 10 |
安装注意事项Installation Instruction
1.绝缘子运输及安装中应轻拿轻放，不应投掷，并避免与各类杂件(导线、铁板、工具等)及坚硬物碰撞、摩擦；
2、复合绝缘子起吊时，绳结要打在端部附件上，严禁打在伞裙或护套上，绳子必须碰及伞裙与护套部分时，应在接触部分用软布包裹；
3、不得将复合绝缘子当作放(收)线的辅助工具，以免使其受到冲击力或弯矩而损伤绝缘子；
4、严禁脚踩绝缘子伞裙；
5、安装均压环时，应注意调整，使环与绝缘子轴线垂直，对于开口型均压环，注意两端开口方向一致，以利于放电，保护伞裙；Note:
1.The transportation and installation of the insulator shall be taken good care without any throwing or collision,fiction with various sundries(wiresiron plates and tools etc.)and solid material.
2.When suspending the composite insulator,the kNot shall be made on the attachment at the end.kNots on shed or sheath are strictly prohibtedWhen the rope has to be contacted with the shed or sheath,the contacting area shall be packed with soft cloths.
3.never apply the composite insulator as the assistant tool for the wire distribution and collection and collection in case that the insulator can bedamages by impact or bending moment.
4.Do not step on the insulator shed with foot.
5.when installing the grading ring,attention shall be attached on the adjustments to make sure that the ring is vertical with the axial of the insulator.And for opening grading ring,the opening directions at both ends shall be consistent to facilitate the discharging and protect the shed.
技术参数表 Main technical parameters

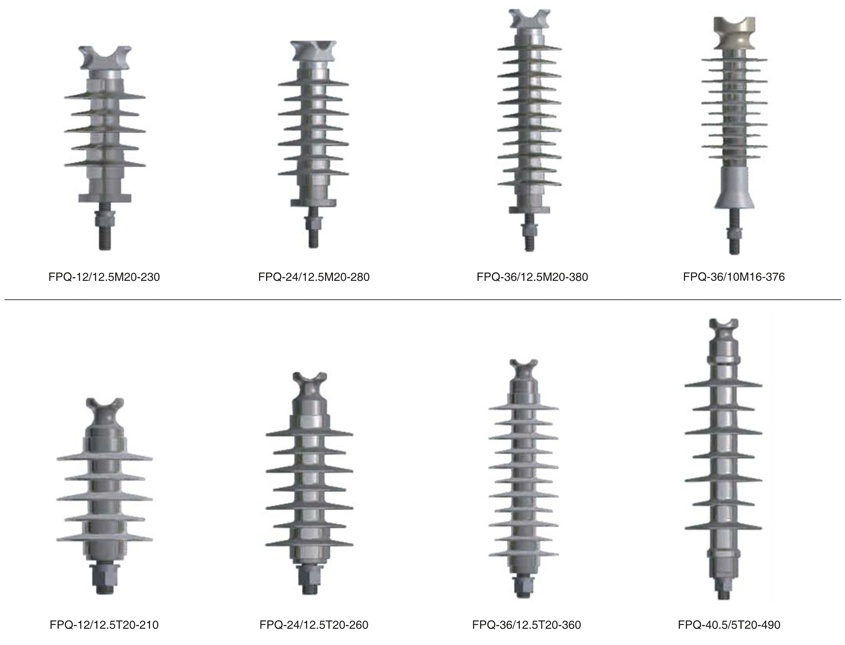

| 规格型号 Spec&Type | 额定 电压(kV Rated voltage | 额定机械 拉伸负荷(kN) Rated mechanical ensionload | 结构 高度H Structure height (mm) | 最小电 弧距离h (mm) Min arc distance | 最小公称 此中距离(mm Minnominal creepage distance | 雷电全波冲击 耐受电压 Full wave lightning impulse withstand voltage (kV) | 工频1min湿 耐受电压(kV) 1min power frequency wet withstand voltage |
| FPO-12/12.5M20-230 | 12 | 12.5 | 230 | 146 | 440 | 75 | 42 |
| FPQ-24/12.5M20-280 | 24 | 12.5 | 280 | 196 | 600 | 125 | 55 |
| FPQ-36/8M20-380 | 36 | 8 | 380 | 296 | 960 | 170 | 70 |
| FPO-36/10M16-376 | 36 | 10 | 376 | 260 | 900 | 170 | 70 |
| FPQ-12/12.5T20-210 | 12 | 12.5 | 210 | 146 | 440 | 75 | 42 |
| FPQ-24/12.5T20-260 | 24 | 12.5 | 260 | 196 | 600 | 125 | 55 |
| FPO-36/8T20-360 | 36 | 8 | 360 | 296 | 960 | 170 | 70 |
| FPQ-40.5/5T20-490 | 40.5 | 5 | 490 | 380 | 920 | 200 | 95 |
技术参数表 Main technical parameters

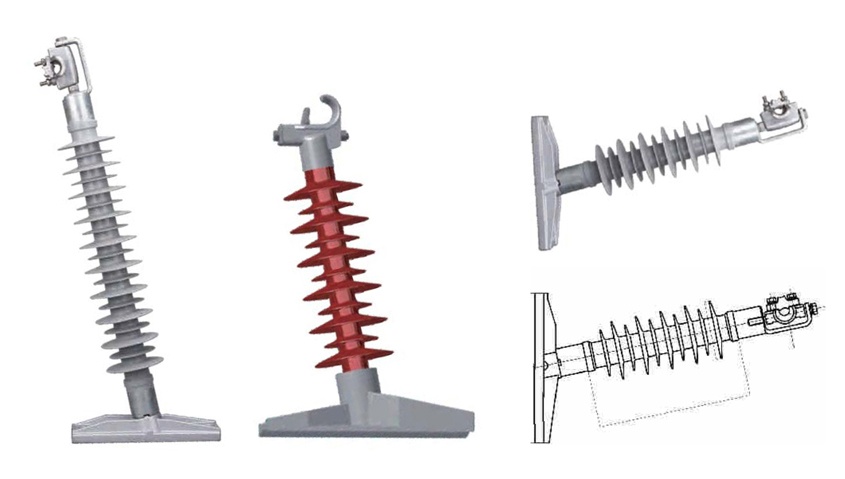

| 规格型号 Spec&Type | 额定 电压(kV) Rated voltage | 额定悬臂 负荷kN Specified Cantilever Load | 结构高度 Length L±15 mm | 爬电距离 (mm) LeakAge distance mm | 干电弧 距离 Dry arc dista nce mm | 工频耐受电压 Power frequency withstand 50Hz | 雷电冲击耐受电压 Lightning impul. Withstand 1,2/50 | ||
| Dry干 kV | Wet湿 kV | Posit. kV | Negat. kV | ||||||
| FC-12 | 12 | 8 | 385 | 600 | 196 | 110 | 100 | 150 | 190 |
| FC-17 | 24 | 6 | 435 | 800 | 246 | 120 | 110 | 180 | 215 |
| FC-24 | 24-36 | 6.3 | 645 | 924 | 350 | 150 | 140 | 235 | 270 |
| FC-35 | 36 | 5.0 | 485 | 950 | 296 | 180 | 165 | 285 | 325 |
| FC-66 | 66-115 | 30 | 970 | 1950 | 660 | 355 | 285 | 570 | 615 |
| FPS-12/8(H | 12 | 8 | 385 | 600 | 196 | 45 | 42 | 95 | 105 |
| FPS-24/6(H | 24 | 6 | 435 | 800 | 246 | 60 | 55 | 145 | 165 |
| FPS-36/5(H | 36 | 5 | 485 | 950 | 296 | 80 | 70 | 170 | 190 |
| FPS-72.5/8(H | 72.5 | 8 | 905 | 1800 | 663 | 200 | 185 | 410 | 430 |
| FPS-126/5(H | 126 | 5 | 1334 | 3150 | 1092 | 250 | 230 | 550 | 570 |
注：额定悬臂负荷可根据客户需求更改，两端金具可由铝合金或者热镀锌钢生产
Note:The SCL can be increased according your requirement,And the metal fittings can be in aluminum or galvanized steel
