◆Product Summary

KYN28A-24 indoor metal-clad movable switchgear is a complete power distribution device for 3.6kV~24kV,3 phase AC 50/60Hz,single bus sectionalized system.It is mainly used for power transmission of middle/small generators in power plants,power receiving,transmission for substations in power distribution and power system of factories,mines and enterprises,and starting of large high-voltagemotor etc.,so as to control,protect and monitor the system.It complies with GB/T11022,GB/T3906,DL/T404 and other relativestandards.It has functions of preventing to push or pull the breaker's handcart with load,breaker's mistakenly open or close,shutoff the breaker when the grounding switch is on the position of close,enter into a electriferous compartment,mistakenly close theinterlock function of the grounding switch when it is electriferous.It can be used with domestic VCA and VS1 vacuum circuit breaker,itcan be used with VD4 from ABB and EV12S from Schneider.

◆Environmental Conditions

1.Ambient Temperature:No more than +40℃ and no less than -15℃.Average temperature is no more than +35℃ within 24 hours.

2.Altitude:No more than 1000m.

3.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.

4.Earthquake Intensity;No more than 8 degrees.

5.Vapor pressure:average daily value is no more than 2.2kPa,average monthly value is no more than 1.8kPa.

6.Installation locations without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.

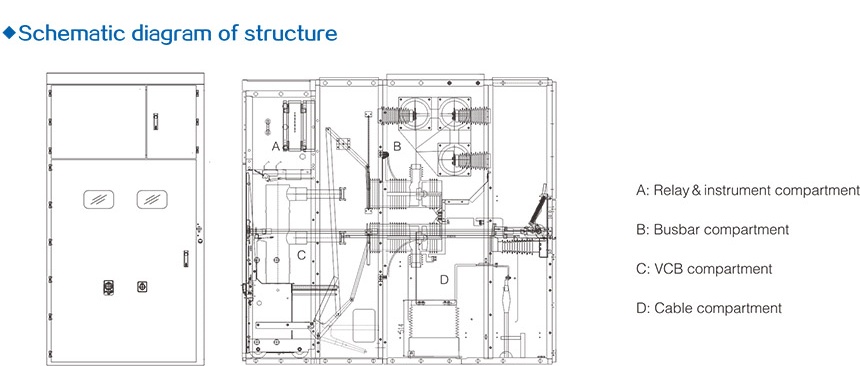

◆Product Features

1.The cabinets and partition board adopting hot-dip Al-Zn alloy-coated steel sheet and frame adopting assembled structure makehigh overall intensity and good earth continuity.

2.The cabinet is combined type and the handcart of breaker is floor structure type.

3.The new composite insulating vacuum circuit breaker has the characteristics of interchangeability and simple replacement.

4.The handcart adopts screw propulsion mechanism,which moves the handcart easily and prevent mis-operation to damage thepropulsion mechanism.

5.All the operations could be done when the cabinet door is closed.

6.The interlocking between the main switch,the handcart and the switch cabinet adopts the mandatory mechanism of mechanicallocking,meeting the functions of five-preventions.

7.The cable room is spacious and can be connected to a number of cables.

8.The degrees of protection is IP4X,which effectively prevents the equipment from being invaded by sundries and insect pests.

9.The product runs safely and reliably through the harsh condensation,filth and internal arc tolerance test.
