GCK low-voltage withdrawable switchgear is widely used in power plants, metallurgy and steel rolling, petrochemical, light industry and textile, ports and docks, buildings and hotels, etc. It is used for distribution and centralized control of motors in power supply systems with AC three-phase four wire or five wire system
◆Product Summary

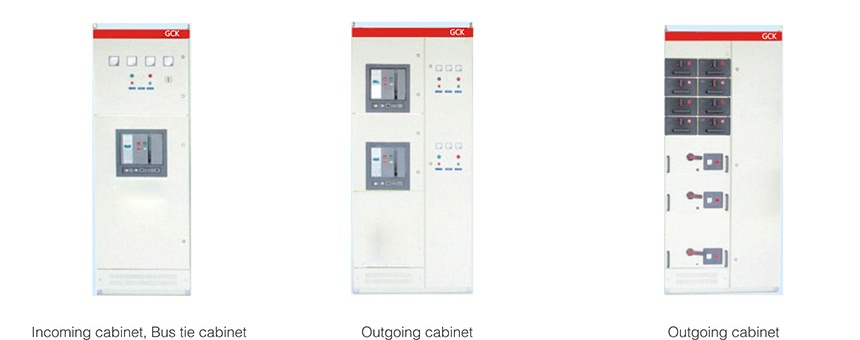

GCK low Voltage withdrawable switchgear consists of two parts,power distribution center (PC Panel)and motor control center(MCC Panel).It is universally applied in power plant,city substations,industry and mine corporations,etc.,with rated voltage 400V,max operating current 4000A and rated frequency 50/60Hz.It can be applied as power conversion distribution control of the powerdistribution equipment like power distribution,electromotor control,lighting,etc.
This switchgear is accordance with international standard IEC439 and national standard GB7251(low Voltage switchgear andcontrolgear assemblies).The main characteristics are high breaking capacity,good performance of dynamic &thermal stability,advanced and reasonable configuration,realistic electric scheme,and strong seriation and generality.All kinds of scheme units arecombined arbitrarily.A cabinet has more loops to be accommodated,which has many advantages like saving area,beautifulappearance,high degrees of Protection,safety and reliability,and convenient maintenance,etc.
◆Environmental Conditions
1.Installation Site:Indoor
2.Altitude:No more than 2000m.
3.Earthquake Intensity:No more than 8 degrees.
4.Ambient Temperature:No more than +40℃ and no less than-15℃.Average temperature is no more than +35℃ within 24 hours.
5.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.
6.Installation locations:without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.
◆Product Features
1.The basic frame of this series of products is a combination assembly structure,All the structural components of the rack can beconnected to each other through screws to form a basic frame.Then,a complete switchgear can be assembled according to theneeds of the door,baffle,partition board,drawer,mounting bracket,busbar and electrical components.
2.The frame adopts special-shaped steel and is positioned by three dimensional plates:bolt connection without welding structure,so
as to avoid welding deformation and stress,and improve installation accuracy.The installation holes of frames and components
change according to modulus E=25mm.
3.The internal structure is galvanized,and the surface of the panel,the side plate and the panel are treated by acid washing and
phosphating,and the electrostatic epoxy powder is used.
4.In the power center (PC)incoming cabinet,the top is the horizontal busbar area,and the lower part of the horizontal busbar is the
circuit breaker room.
◆Technical Parameters | ||||
Sr. | Content | Unit | Value | |
1 | Rated Operational Voltage | V | 400 | |
2 | Rated Insulation Voltage | V | 690 | |
3 | Bated Frequency | Hz | 50/60 | |
4 | Main Bus-Bar | Rated Current | A | ≤4000 |
Rated short time withstand current(1S) | kA | ≤80 | ||
Rated Peak Withstand Current | kA | ≤176 | ||
5 | Distribution Bus | Rated Current | A | ≤1500 |
Rated short time withstand current(1S) | kA | ≤50 | ||
Rated Peak Withstand Current | kA | ≤105 | ||
6 | Frequency Withstand Voltage in 1 min of Aux Control Loop | kV | 2 | |
7 | Rated Impulse Withstand Voltage | kV | 8 | |
8 | Degrees of Protection | IP | IP40 | |
9 | Electrical Clearance | mm | ≥10 | |
10 | Creepage Distance | mm | ≥12.5 | |
11 | Overvoltage Level | 一 | Ⅲ/IV | |
12 | Pollution Degree | 一 | 3 | |
