The GGJ low-voltage reactive power intelligent compensation device adopts computer-aided design (CAD), introduces microcomputer control, and implements intelligent tracking compensation for reactive power. Its structure is reasonable and widely used in low-voltage power grids, improving power factor, reducing reactive power loss, and improving power supply quality. It is an energy-saving product.
◆Product Summary
The GGJ series low voltage reactive power compensation cabinet is suitable for low voltage power grid with AC 50/60Hz andrated voltage 400V,so as to improve power factor,reduce line loss and improve power quality.The intelligent controller is the core of thesystem,which uses switching devices to automatically switch capacitors according to the power factor of the grid,ensuring that the powergrid always has high power factor.
◆Environmental Conditions
1.Installation Site:Indoor
2.Altitude:No more than 2000m.
3.Earthquake Intensity:No more than 8 degrees.
4.Ambient Temperature:No more than +40℃ and no less than-15℃.Average temperature is no more than +35℃ within 24 hours.
5.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.
6.Installation locations:without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.
◆Product Features
1.The product structure is versatile and can be combined with MNS,GCK,GCS,GGD and many other low Voltage switchgears.
2.The compensation mode is flexible and diverse,which could be three phase compensation,single phase compensation and threephase single phase mixed compensation.
3.It could be connected to comprehensive automatic system with many communication ports like Rs485,GPRS,etc.
4.According to the operation of the power grid,various switching modes,such as AC contactor,semiconductor switch,compoundswitch and so on,are adopted.
5.Afterseries connecting the reactor,the harmonic of the power grid can be suppressed effectively and the quality of the power grid
can be improved.
◆Technical Parameters
Sr. | Conten | Unit | Value |
1 | Rated Voltage | V | 400 |
2 | Rated Insulation Voltage | V | 690 |
3 | Rated Frequency | Hz | 50/60 |
4 | Rated Capacity | kyar | 60~530 |
5 | Operating Voltage | Rated Voltage of 0.85 to 1.10 times | |
6 | Max,Allowable Overcurrent | 1.3 times Rated Current | |
7 | Number of circuits controlled | 4~12 | |
8 | Switching Delay Time | 0~999S Adjustable | |
9 | Operation Mode | Automatic,Continuous Operation | |
10 | Power Factor of Load Terminal | The load changes from 5 to 100%,the P.F values remains above 0.95 |

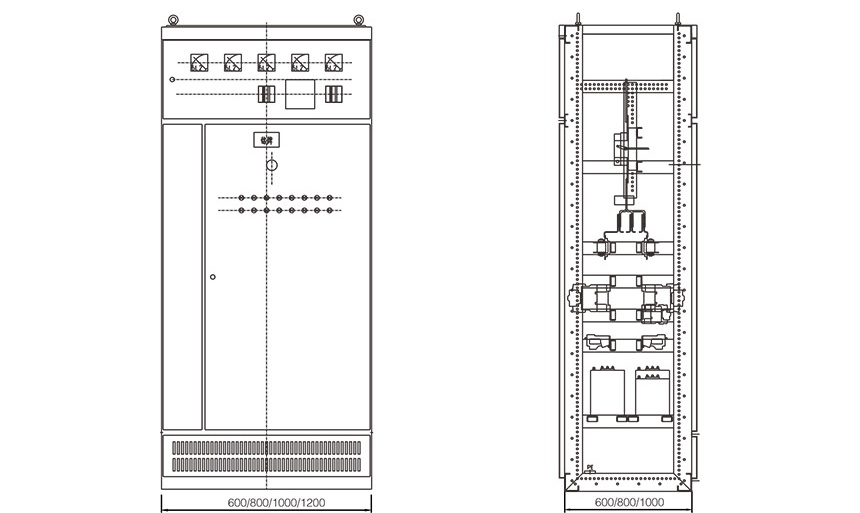

◆Schematic diagram of structure
◆Product Summary
The GGJ series low voltage reactive power compensation cabinet is suitable for low voltage power grid with AC 50/60Hz andrated voltage 400V,so as to improve power factor,reduce line loss and improve power quality.The intelligent controller is the core of thesystem,which uses switching devices to automatically switch capacitors according to the power factor of the grid,ensuring that the powergrid always has high power factor.
◆Environmental Conditions
1.Installation Site:Indoor
2.Altitude:No more than 2000m.
3.Earthquake Intensity:No more than 8 degrees.
4.Ambient Temperature:No more than +40℃ and no less than-15℃.Average temperature is no more than +35℃ within 24 hours.
5.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.
6.Installation locations:without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.
◆Product Features
1.The product structure is versatile and can be combined with MNS,GCK,GCS,GGD and many other low Voltage switchgears.
2.The compensation mode is flexible and diverse,which could be three phase compensation,single phase compensation and threephase single phase mixed compensation.
3.It could be connected to comprehensive automatic system with many communication ports like Rs485,GPRS,etc.
4.According to the operation of the power grid,various switching modes,such as AC contactor,semiconductor switch,compoundswitch and so on,are adopted.
5.Afterseries connecting the reactor,the harmonic of the power grid can be suppressed effectively and the quality of the power grid
can be improved.
◆Technical Parameters
Sr. | Conten | Unit | Value |
1 | Rated Voltage | V | 400 |
2 | Rated Insulation Voltage | V | 690 |
3 | Rated Frequency | Hz | 50/60 |
4 | Rated Capacity | kyar | 60~530 |
5 | Operating Voltage | Rated Voltage of 0.85 to 1.10 times | |
6 | Max,Allowable Overcurrent | 1.3 times Rated Current | |
7 | Number of circuits controlled | 4~12 | |
8 | Switching Delay Time | 0~999S Adjustable | |
9 | Operation Mode | Automatic,Continuous Operation | |
10 | Power Factor of Load Terminal | The load changes from 5 to 100%,the P.F values remains above 0.95 |
◆Schematic diagram of structure
