JP Outdoor Comprehensive Distribution Board

JP outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, outgoing lines, and reactive power compensation; Integrate short-circuit, overload, overvoltage, leakage and other protective functions; Small in size, aesthetically pleasing in appearance

JP Outdoor Comprehensive Distribution Board

Inquire NOW HONOR

Product Profile

◆Product Summary

JP series outdoor comprehensive distribution board is suitable for low voltage distribution system with AC 50Hz andrated voltage 400V.It is used for power distribution,control,protection,reactive power compensation and electric energy metering toindustrial and mining enterprises,street lighting and residential community.The product meets the standards of GB7251.1,GB/T15576 and so on.It is an ideal low voltage switchgear for urban and rural power grid.

◆Environmental Conditions

1.Installation Site:outdoor.

2.Altitude:No more than 2000m.

3.Earthquake Intensity:No more than 8 degrees.

4.Ambient Temperature:No more than +40℃ and no less than -25℃.Average temperature is no more than +35℃ within 24 hours.

5.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.

6.Installation locations:without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.

◆Product Features

1.The product is divided into incoming compartment,metering compartment,feeder compartment and reactive power compensationcompartment.Each compartment is isolated from each other.The electrical components in the box are reasonably arranged,firmlyinstalled and convenient maintenance.

2.The product integrates power distribution,metering,protection and reactive power compensation,and is installed on the outdoortransformer pole.It is convenient for construction,economical and practical.

3.The product has high breaking ability and good dynamic and thermal stabiity.

4.According to the different environmental conditions,the enclosure can use cold rolled steel plate,stainless steel plate,SMC and so on.

5.The product is designed with free maintenance.

◆Technical Parameters

Sr.ContentUnitValue
1 Rated Operational VoltageV400
2 Rated Insulation VoltageV690
3 Rated FrequencyHz50
4 Rated CurrentA≤630
5 Rated Leakage CurrenmA 30~300Adjustable
6 Capacity of TransformerkVA   30~400
7 Degrees of ProtectionIP   IP44

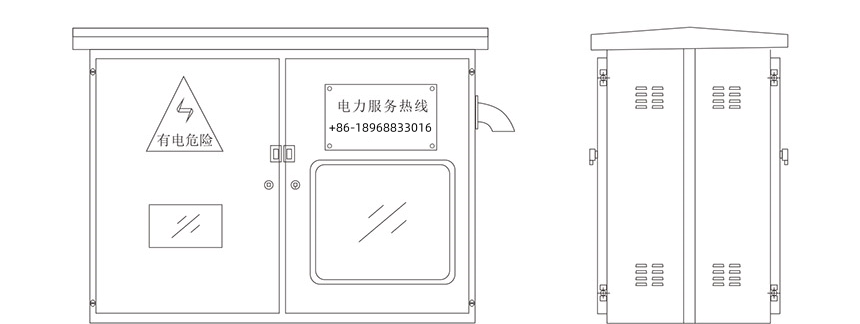

◆Schematic diagram of structure


Product Profile

◆Product Summary

JP series outdoor comprehensive distribution board is suitable for low voltage distribution system with AC 50Hz andrated voltage 400V.It is used for power distribution,control,protection,reactive power compensation and electric energy metering toindustrial and mining enterprises,street lighting and residential community.The product meets the standards of GB7251.1,GB/T15576 and so on.It is an ideal low voltage switchgear for urban and rural power grid.

◆Environmental Conditions

1.Installation Site:outdoor.

2.Altitude:No more than 2000m.

3.Earthquake Intensity:No more than 8 degrees.

4.Ambient Temperature:No more than +40℃ and no less than -25℃.Average temperature is no more than +35℃ within 24 hours.

5.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.

6.Installation locations:without fire,explosion danger,serious pollution,chemical corrosion and violent vibration.

◆Product Features

1.The product is divided into incoming compartment,metering compartment,feeder compartment and reactive power compensationcompartment.Each compartment is isolated from each other.The electrical components in the box are reasonably arranged,firmlyinstalled and convenient maintenance.

2.The product integrates power distribution,metering,protection and reactive power compensation,and is installed on the outdoortransformer pole.It is convenient for construction,economical and practical.

3.The product has high breaking ability and good dynamic and thermal stabiity.

4.According to the different environmental conditions,the enclosure can use cold rolled steel plate,stainless steel plate,SMC and so on.

5.The product is designed with free maintenance.

◆Technical Parameters

Sr.ContentUnitValue
1 Rated Operational VoltageV400
2 Rated Insulation VoltageV690
3 Rated FrequencyHz50
4 Rated CurrentA≤630
5 Rated Leakage CurrenmA 30~300Adjustable
6 Capacity of TransformerkVA   30~400
7 Degrees of ProtectionIP   IP44

◆Schematic diagram of structure
