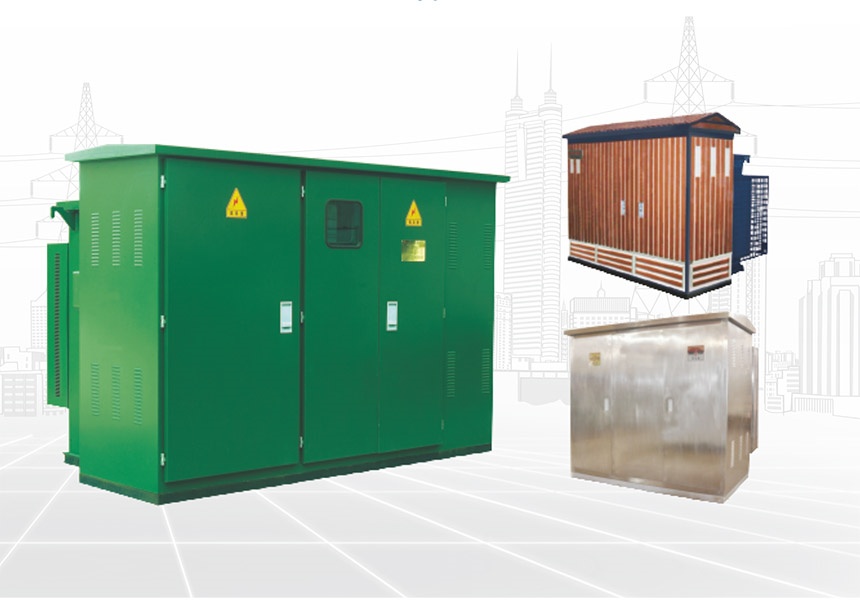

YB6-12/0.4 Prefabricated Substation

Widely used in urban power grid renovation, residential communities, high-rise buildings, industrial and mining, hotels, shopping malls, airports, railways, oil fields, docks, highways, temporary and temporary electricity facilities, and other indoor and outdoor places

YB6-12/0.4 Prefabricated Substation

Inquire NOW HONOR

Product Profile


◆Product Summary

YB6 prefabricated substation,as an important power supply unit in cable distribution network,is a complete set prefabricatedproduct integrated by high voltage control,protection,transformation and distribution equipment,which is widely used in urban andrural distribution network.

The high voltage load switch and high voltage fuse are placed in the transformer oil,which have two structural forms:share thesame container with the transformer or separate container.The oil tank is fully sealed with oil temperature meter,oil level meter,pressure gauge,pressure release valve,oil discharge valve and other components to monitor the operation of the transformer.Theproduct is divided into ring network type,terminal type and power supply side.The HV side adopts the pluggable fuse,and the fuse'sfuse does not affect the performance of the transformer oil.According to the different low voltage feeder scheme,products aredivided into standard,enhanced and comprehensive three kinds of shell form,users and design units in the selection,it is moreflexible and more economical.

◆Environmental Conditions

1.Altitude:No more than 1000m.

2.Ambient Temperature:No more than +40℃ and no less than -45℃.

3.Relative Humidity:the average daily value is no more than 95%,the average monthly value is no more than 90%.

4.Earthquake proof Level:Horizontal Accelerations≤0.3g,Vertical Acceleration≤0.15g.

5.Installation Location:Well-ventilation,chemical corrosion and violent vibration for product installed place.Vertical slope of lessthan 3 degrees.

◆Product Features

1.Compact structure and small volume.It is only about 1/3 of EU type prefabricated substation with same capacity,which greatly

reduce the floor space.

2.Fully sealed and insulated structure,which protects personal safety reliably.

3.The high voltage connection can be used in the ring network,and also can be used in the terminal,the power supply mode isflexible and the reliability is high.

4.The transformer has excellent performance,with low loss,low noise,low temperature rise,strong overload ability and strong ability toresist short circuit impact.

5.To meet the requirements of all kinds of low voltage feed out,it can be selected according to the scheme and also can be designedby itself.

6.The cable joints can be plugged and unplugged with load and play the role of the disconnecting switch.

◆Technical Parameters

ContentUnitH.T sideTransformer sideL.T side
Rated CapacitykVA
50-1250
Rated VoltagekV1010/0.40.4
Rated CurrentA63072/1802000
Rated Short circuit Breaking CurrentkA≥20
≥30
Rated Short Circuit Making CurrenkA50

Rated Thermal Stability CurrentkA/S≥20/4
≥30/1
Power Frequency Withstand Voltage in 1 minkVEarth:42 Fracture:48Oil:352.0/2.5
Lightning Impulse Withstand VoltagekV75

Degrees of ProtectionIPP33D
Noise LevelDB≤55

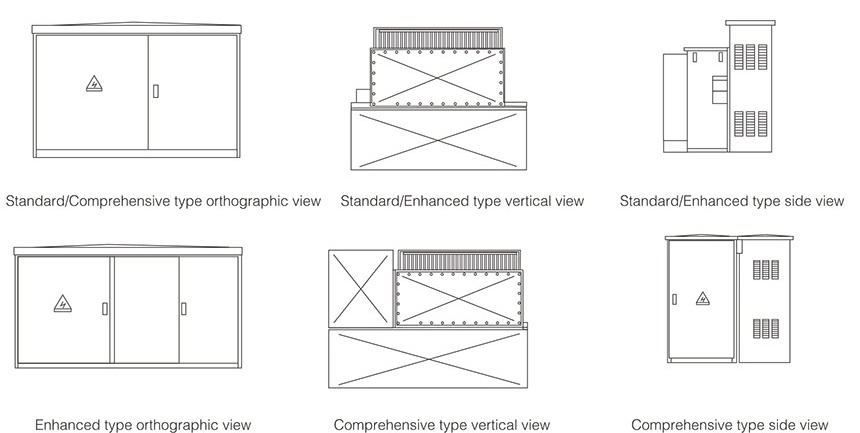

◆Schematic diagram of structure
