概述Product Structure

ZW32M-12型户外高压真空断路器为额定电压12kV,三相交流50Hz的户外配电设备，它主要用来开断、关合电力系统中的负荷电流、过载电流、

短路电流。适用于变电站及工矿企业配电系统中作保护和控制作用，及农村电网频繁操作的场所。

本断路器具有体积小、重量轻、防凝露、免维护等特点，能适应较恶劣的气候条件和污秽环境。

该型号产品采用永磁操作机构进行操作；由于永磁操作机构由永磁体提供动作能量，使开关快速保持在分合闸位置，其机械零件数量少、机械传动链短，从而大大提高了开关的可靠性和机械寿命。

ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kV,three-phase AC 50Hz outdoor distribution equipment,which is mainly used for breaking,closing power system load current,overload current,short-circuit current.For substation and industrial andmining enterprises distribution system for the protection and control of the role and place of rural power grids frequent operation.

The circuit breaker has small size,light weight,anti-condensation,maintenance-free characteristics,can adapt to poor weather conditionsand dirty environments.

The models with permanent magnet operating mechanism operates;since the permanent action energy operating mechanism provided bya permanent magnet,the switch quickly to keep the points off position,a small number of mechanical parts,mechanical transmission chain isshort,thus greatly improving the switch reliability and mechanical life.

符合标准Standards Compliant

GB1984《交流高压断路器》GB1984"AC high voltage circuit breakers"

GB1102《高压开关设备和控制设备标准的共同技术要求》GB1102 "high-voltage switch and control equipment standards common technicalrequirements"

GB311.1-6《高压输变电设备的绝缘配合》GB311.1-6 insulated high voltage transmission and distribution equipment."

GB763《交流高压电器在长期工作时的发热》GB763 "AC high voltage electrical work in long-term fever"

GB2706《交流高压电器动、热稳定试验方法》GB2706"AC high voltage electrical dynamic and thermal stability test methods"

GB3309《高压开关设备在常温下的机械试验》GB3309 "high voltage switch at room temperature mechanical test"

DL/T593《高压开关设备的共同订货技术条件》DL/T593"common ordering technology high voltage switch"

使用环境条件Service Condition

1.周围空气温度：-40℃~+45℃  The ambient air temperature:-40 ℃~+45 ℃

2.海拔高度：不超过2000m  Altitude:not exceed 2000m

3.周围空气可以受到尘埃、烟、腐蚀性气体、蒸汽或盐雾的污染  The ambient air can be contaminated dust,smoke,corrosive gases,vaporsor salt spray.

4.风速不超过34m/s(相当于圆柱表面上的700pa)   The wind speed does not exceed 34m/s(equivalent to 700paon the cylindrical surface).

5.来自开关设备和控制设备处部的振动或地动是可以忽略的  vibration or earth from the switch and control equipment at the Ministry isnegligible

6.污秽等级：IV级  Contamination Level:IV Class

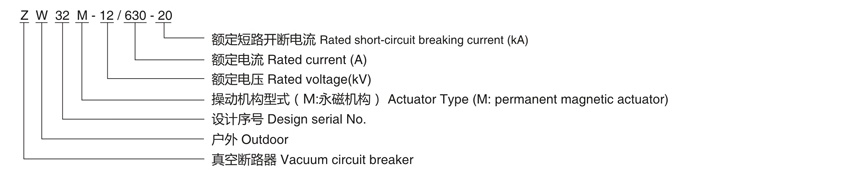

型号及其含义Model description

主要技术参数 Technical Parameters

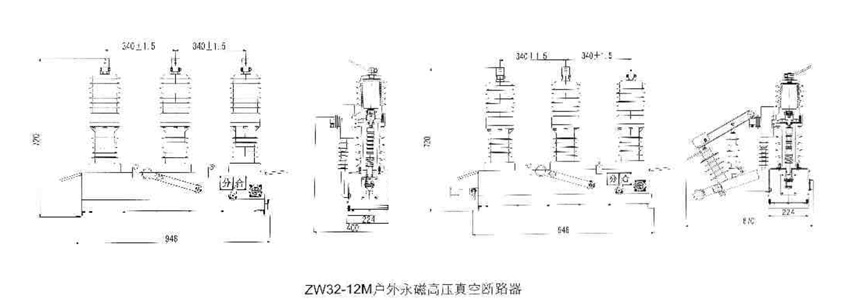

外形及安装尺寸图 Outine dimension and installation drawing
