概述Product Structure

FZW28-12F型户外用户分界真空负荷开关(FFK),为额定电压12kV,三相交流50Hz的户外柱上配电开关设备。采用真空灭弧和SF6气体作对地及相间绝缘介质，是一种免维护负荷开关。

本产品符合：GB3804《高压交流负荷开关》及GBT11022《高压开关设备和控制设备标准的共用技术要求》。该户外分界真空负荷开关(负荷开关本体与FDR-01型故障检测控制器)具备故障检测功能，保护控制功能和通讯功能，安装于10kV配电线路用户进线的责任分界点处，也可以适用于符合要求的分支线连接处与前级重合器配合，可实现自动切除单相接地故障和自动隔离相间短路故障，并能快速定位故障点。

Users boundaries FZW28-12F Outdoor vacuum load switch (FFK),rated voltage 12kV,three-phase AC 50Hz outdoor column distribution switchgear.Vacuum interrupter and SF6 gas against ground.interphase dielectric,is a maintenance-free load switch.

This product complies with:GB3804 "AC high voltage load switch"and GBT11022 "high-voltage switchgear and control equipment standardcommon technical requirements."The boundaries of outdoor vacuum load switch (negative dutch switch body and FDR-01-type fault detectioncontroller)with fault detection,protection and control functions and communication functions,mounted on responsibility 10kV distribution line atthe demarcation point into the line user,you can also applicable to meet the requirements of the branch line connection in conjunction with thepre-coincidence,automatic removal of single-phase ground fault isolation and automatic phase short circuit fault,and can quickly locate the pointof failure.

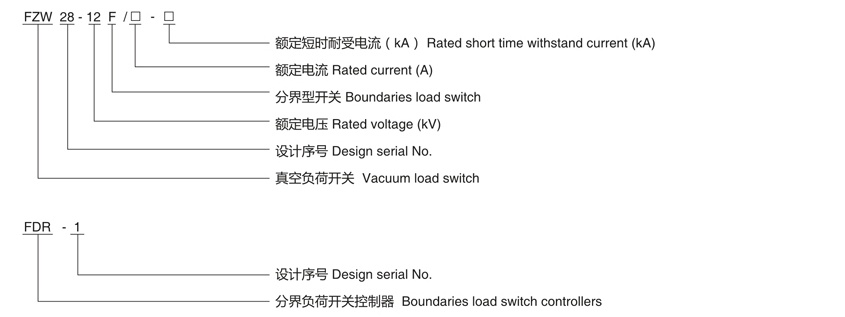

产品型号说明Mode Description

使用环境条件Environmental conditions

1.周围空气温度上限不超过40℃,不限不超过-45℃;

1.The maximum ambient air temperature does not exceed 40℃,not limited to not more than -45℃;

2.风速不大于35m/s;

2.The wind speed is not greater than 35m /s;

3.海拔不高于1000m,地震烈度不超过8度；

3.altitude higher than 1000m,the earthquake intensity does not exceed 8 degrees;

4.环境湿度：月平均相对湿度不大于90%;日平均相对湿度不大于95%;

4.Humidity:monthly average relative humidity less than 90%;daily average relative humidity less than 95%;

5.覆冰厚度不超过10mm;

5.ice thickNess does not exceed 10mm;

6.安装场所应为无易燃、易爆、化学腐蚀及经常性剧烈振动的场所；

6.The installation site should be non-flammable,explosive,chemical corrosion and recurrent severe vibration place;

7.中性点接地方式：中性点不接地、中性点经消弧线圈接地、中性点经小电阻接地。

7.Neutral Grounding Mode:ungrounded neutral point arc suppression coil grounded neutral grounding via low resistance.

主要技术参数 Technical Parameters

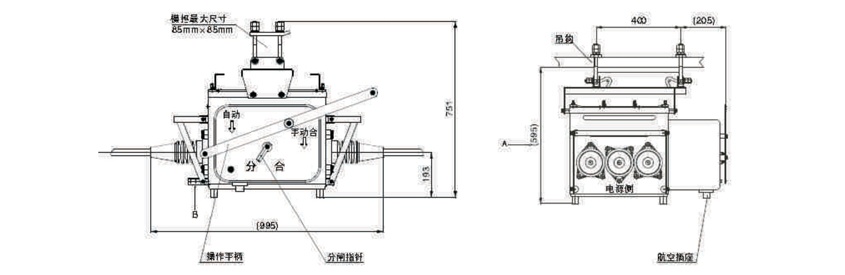

外形及安装尺寸图 Outine dimension and installation drawing
