AB-3S-12 series circuit breaker is a new generation of column mounted intelligent vacuum circuit breakers developed by our company, which integrates advanced domestic and foreign technologies, draws on the strengths of many families, adopts a new design concept, and utilizes high-tech means and new research and development
概述Product Structure
3S-12系列户外真空永磁断路器是本公司综合国内外先进技术、博采众家之长、采用全新设计理念、运用高科技手段、 新研制的新一代柱上真空断路器。该产品既可作为35kV变电所主变10kV出线的开关，也可作为配电网的柱上开关，和本公司生产的控制器相结合便可方便实现控制、保护、测量、通讯
主要特点：采用永磁机构，使用部件大量减少，合闸功率大幅度减小，稳定可靠，无需定期维护保养；采用进口户外环氧树脂作为外绝缘材料重量轻、寿命长达15年以上，耐候性好，无油、无SF6,符合环保要求；动作时间短，能快速切断故障，保护配合方便灵活；选用外置PT作为电源无须外接电源即可实现电动操作；选用专用遥控器可实现遥控操作，无须上杆即可进行停送电操作；选用一体化设计的高压隔离开关，使结构紧凑安装检修非常方便。
3S-12 series of permanent magnet outdoor vacuum circuit breaker is the Company's consolidated foreign advanced technology,publicgambling house long,with a new design concept,the use of high-tech means,the latest development of a new generation of column vacuumcircuit breakers.The product can be used as the main transformer 10kV Substation 35kV switch outlet,but also as a distribution network of columnswitch,and this combined with the company's controller can facilitate the realization of control,protection,measurement,communication,is toachieve preferred equipment distribution network automation and miniaturization substation.
Main features:Magnetic actuation (permanent magnet)institutions so that a significant reduction in parts,greatly reducing the switch on thepower,stable and reliable,no regular maintenance;imported outdoor epoxy resin as outer insulation material,light weight,long life more than15 years,the weather is good,no oil,no SF6,comply with environmental requirements;action time is short,fast cutting fault protection with theconvenience and flexibility;use solar or CT as a power,no external power supply electric operation can be realized;use special remote controlenables remote operation without lever stop transmission operation can be carried out;the selection of high-voltage isolation switch integrateddesign,compact structure,convenient installation and maintenance.
使用环境条件Service Condition
1.工作环境温度：-40℃~+60℃
1.Working temperature:-40 ℃～+60 ℃
2.工作环境湿度：0-95%
2.Operating humidity:0-95%
3.工作环境阳光辐射：≤1.1kW/m
3.The working environment of solar radiation:≤1.1kW/m
4.风速不超过35m/s(相当于圆柱表面上的700pa)
4.The wind speed does not exceed 35m/s(equivalent to 700pa on the cylindrical surface)
5.污秽等级：IV级
5.Pollution Level:IV grade
6.覆冰厚度：≤10mm
6.ice thickNess:≤10mm
7.地震烈度：≤8°
7.seismic intensity:≤8°

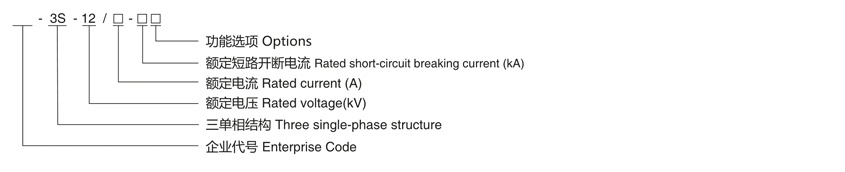

型号及其含义Model description
主要技术参数 Technical Parameters.
| 序号 No | 名称 Name | 单位 Unit | 数值 Data |
| 1 | 额定电压Rated voltage | kV | 12 |
| 2 | 额定电流Rated current | A | 630/1250 |
| 3 | 额定频率Rated power frequency | Hz | 50 |
| 4 | 额定短路开断电流Rated short-circuit breaking current | kA | 20 |
| 5 | 额定峰值耐受电流(峰值)Rated withstand current(peak) | kA | 50 |
| 6 | 额定短时耐受电流(4s)Rated short-time withstand current(4s) | kA | 20 |
| 7 | 额定短路关合电流(峰值)Rated short-circuit making current(peak) | kA | 50 |
| 8 | 额定短路电流开断次数Rated short-circuit breaking time | 次Secondary | 30 |
| 9 | 机械寿命Mechanical life | 次Secondary | 10000 |
| 10 | 工频耐受电压(1min)Power frequency withstand voltage(1min) | kV | 42 |
| 11 | 雷电冲击耐受电压(峰值)Lightning impulse withstand voltage (peak) | kV | 75 |
| 12 | 主回路电阻Main circuit resistance | μQ | ≤120 |
| 13 | 电流传感器变化Current sensor changes | 30~1250/5 |

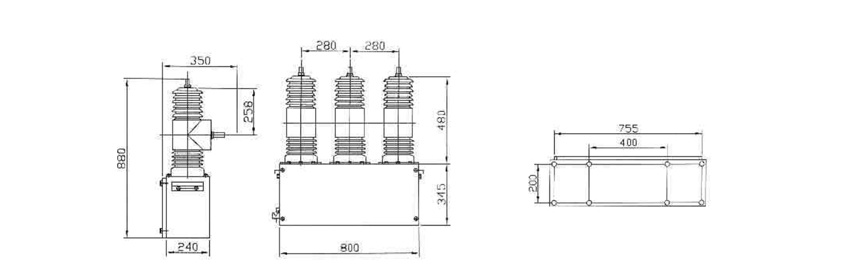

外形及安装尺寸图 Outline dimension and installation drawing
3S outdoor high voltage vacuum circuit breaker overall dimensions drawing
