FLN36-12 Voltage AC Load Breaker Switch

The FLN36-12 indoor AC sulfur hexafluoride load switch is used in three-phase AC 10kV, 50Hz power systems, and is used in industrial and mining enterprises, high-rise buildings, residential communities, prefabricated substations, and other places

FLN36-12 Voltage AC Load Breaker Switch

Inquire NOW HONOR

Product Profile

General

FLN type indoor high voltage AC load breaker switch refer to international new technology and develop the switching equipment in accordingto the relevant standards in China's electric power system.Its performance indicators in full compliance IEC420,694,129 and national standardsGB3804-2004“3.6kV-0.5kV high voltage AC load breaker switch”GB1985-2004"high-voltage AC isolation switch and earthing switch",GB/T11022-1999“common technical requirements for high-voltage switchgear and control equipment standards”.This is the main switchingelement RMU.The load breaker switch is a collection multifunctional medium voltage switchgear of gates,sub-gate,earthing.In a fully sealedwith strengthen the structure of the epoxy resin housing to filled with SF6 gas,0.05MPa,with the minimum parts to achieve the above threefunctions,to ensure product quality,improve reliability,maintenance-free.It can be safely run for more than 20 years in normal conditions.

Product standards

● GB311.1-1997 Insulation Co-ordination for High Voltage Transmission and Distribution Equipment

●GB3804-2004 High-voltage Alternating-current Switches for Rated Voltage above 3.6kV and less than 40.5kV

● GB/T 11022-1999 Common Specifications for High-voltage Switchgear and Controlgear Standards

● DLT593-2006 Common Specifications for High-voltage Switchgear and Controlgear Standards

●GB16926-2009 High-voltage Alternating Current Switch-Fuse Combinations

● GB/T 1985-2004 High-voltage Alternating-current Disconnectors and Earthing Switches

● GB/T 15166-94 High-voltage Alternating-current Fuses

◆Operating conditions

● Ambient air temperature Limit +40℃;Lower -25℃;

● Above sea level1000m;

● Relative humidity:daily average is less than 95%,on average less than 90%;

● Seismic intensity of not more than 8 degrees;

● No fire,explosion,chemical corrosion and severe vibration in the workplace;

● Contamination level:II.

Basic Functions And Features

1.Load breaker switch adapts double fracture,rotary movable contact structure,with the following three kinds of operating states:Closing,

opening,earthing.

2.Using SF6 gas as an arc extinguishing and insulating medium,the main circuit seals by the upper and lower housing pouring epoxy resin,theconductive function is unaffected by external influences.

3.Good safety performance.If internal arcing occurs,the housing has an internal structure weak point,it will be rushed to open,followed by thecabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet,ensure that the switch cabinet securitychecks.

4.Load breaker switch sets gates,opening,earthing switch three at one,filled with SF6 gas encapsulated in epoxy resin housing,three-positioninterlock,compact structure,high security and reliability.

5.Small size,light weight,maintenance-free,easy and safe to operate.

Technical parameters

1.1 Technical parameters

    ItemUnitFLN36-12/630FLN36-12D/125-50
witch-fuse combinations
    Rated voltagekV1212
    Rated frequengHz5050
    Rated currentA630125
ightning impulse withstand voltage(peakkV4248
    Rated insulation leve
                               1min power frequency withstand voltage
kV7585
    Rated thermal current(25)kA20
    Rated dynamic currentkA50
    Rated short-circuit on-off currentkA25
    Rated closed loop breaking currentA630
   Rated active on load breaking currentA630
    Rated cable charger breaking currentA10
    Rated short-circuit breaking current(peakkA
50
    Rated transfer currentA
1700
    Fuse type

5fldj-12
    Impact output energy
1+0.5
    Rated thermal current for grounding switch(2SkA202
    Rated dynamic current for grounding switch(peakkA50Maximum torque
    Rated short-circuit on-off current for grounding switchkA50Maximum torque

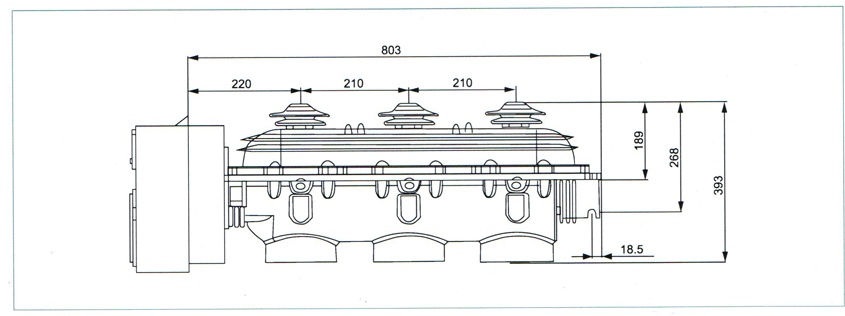

Overall and Installation dimension


Product Profile

General

FLN type indoor high voltage AC load breaker switch refer to international new technology and develop the switching equipment in accordingto the relevant standards in China's electric power system.Its performance indicators in full compliance IEC420,694,129 and national standardsGB3804-2004“3.6kV-0.5kV high voltage AC load breaker switch”GB1985-2004"high-voltage AC isolation switch and earthing switch",GB/T11022-1999“common technical requirements for high-voltage switchgear and control equipment standards”.This is the main switchingelement RMU.The load breaker switch is a collection multifunctional medium voltage switchgear of gates,sub-gate,earthing.In a fully sealedwith strengthen the structure of the epoxy resin housing to filled with SF6 gas,0.05MPa,with the minimum parts to achieve the above threefunctions,to ensure product quality,improve reliability,maintenance-free.It can be safely run for more than 20 years in normal conditions.

Product standards

● GB311.1-1997 Insulation Co-ordination for High Voltage Transmission and Distribution Equipment

●GB3804-2004 High-voltage Alternating-current Switches for Rated Voltage above 3.6kV and less than 40.5kV

● GB/T 11022-1999 Common Specifications for High-voltage Switchgear and Controlgear Standards

● DLT593-2006 Common Specifications for High-voltage Switchgear and Controlgear Standards

●GB16926-2009 High-voltage Alternating Current Switch-Fuse Combinations

● GB/T 1985-2004 High-voltage Alternating-current Disconnectors and Earthing Switches

● GB/T 15166-94 High-voltage Alternating-current Fuses

◆Operating conditions

● Ambient air temperature Limit +40℃;Lower -25℃;

● Above sea level1000m;

● Relative humidity:daily average is less than 95%,on average less than 90%;

● Seismic intensity of not more than 8 degrees;

● No fire,explosion,chemical corrosion and severe vibration in the workplace;

● Contamination level:II.

Basic Functions And Features

1.Load breaker switch adapts double fracture,rotary movable contact structure,with the following three kinds of operating states:Closing,

opening,earthing.

2.Using SF6 gas as an arc extinguishing and insulating medium,the main circuit seals by the upper and lower housing pouring epoxy resin,theconductive function is unaffected by external influences.

3.Good safety performance.If internal arcing occurs,the housing has an internal structure weak point,it will be rushed to open,followed by thecabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet,ensure that the switch cabinet securitychecks.

4.Load breaker switch sets gates,opening,earthing switch three at one,filled with SF6 gas encapsulated in epoxy resin housing,three-positioninterlock,compact structure,high security and reliability.

5.Small size,light weight,maintenance-free,easy and safe to operate.

Technical parameters

1.1 Technical parameters

    ItemUnitFLN36-12/630FLN36-12D/125-50
witch-fuse combinations
    Rated voltagekV1212
    Rated frequengHz5050
    Rated currentA630125
ightning impulse withstand voltage(peakkV4248
    Rated insulation leve
                               1min power frequency withstand voltage
kV7585
    Rated thermal current(25)kA20
    Rated dynamic currentkA50
    Rated short-circuit on-off currentkA25
    Rated closed loop breaking currentA630
   Rated active on load breaking currentA630
    Rated cable charger breaking currentA10
    Rated short-circuit breaking current(peakkA
50
    Rated transfer currentA
1700
    Fuse type

5fldj-12
    Impact output energy
1+0.5
    Rated thermal current for grounding switch(2SkA202
    Rated dynamic current for grounding switch(peakkA50Maximum torque
    Rated short-circuit on-off current for grounding switchkA50Maximum torque

Overall and Installation dimension
