The GW8 series neutral point isolation switch is an AC 50Hz outdoor device used for connecting the neutral points of transformers under no-load conditions.
产品简介General
本隔离开关是由支柱绝缘子、绝缘瓷瓶和导电部分组成，在支柱绝缘子上部装有静触头及连接母线的连接板，在支柱绝缘子和绝缘瓷瓶座间有金属底座、操作拐臂、操作绝缘子。底座上装有闸刀，CS8人力操动机构通过连杆、操作绝缘子、拐臂与闸刀相连，也可配用CJ6电动机构。隔离开关采用拍合式结构，占地面积小；
隔离开关转动部分按免维护的要求设计。采用不锈钢轴销与无油自润滑轴承相配合结构；钢制件采用热镀锌，确保隔离开关操作灵活、轻便、
可靠、永不锈蚀。
GW8 outdoor high voltage disconnector is a single phase AC switching device for 50 to 60HZ high voltage.It is use for breaking transformerneutral point earthing when there is voltage but without load in the power system with the maximum voltage of 126kV.The product is divided two types:ordinary and anti-dirt (W)type.
The CS8 manual-operated device mechanism or CJ6 motor-operated device mechanism can be cooperated with the disconnector.

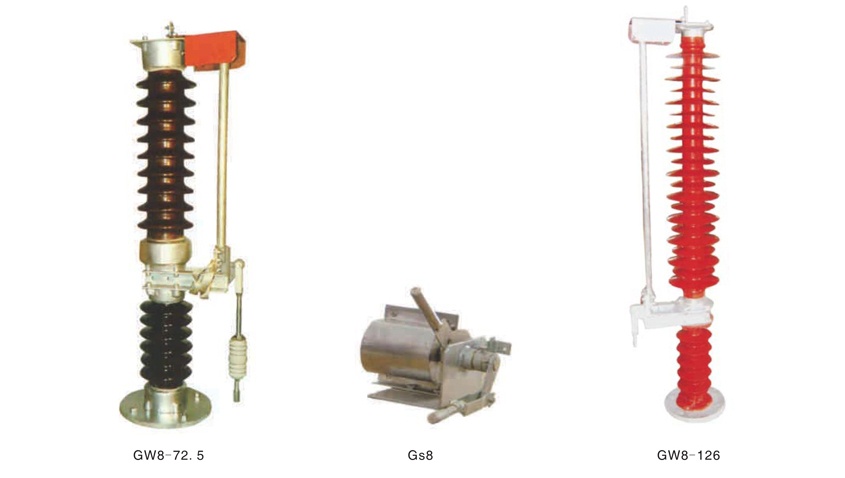

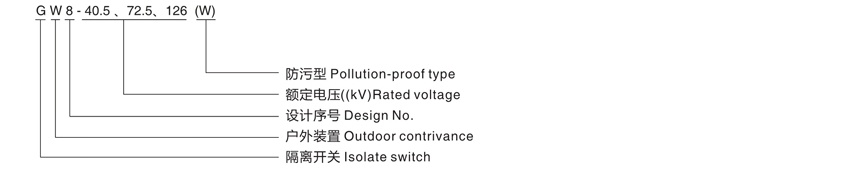

型号及含义Model and Implication
主要技术数据 Main Technical Date
| 名称 Name | 单位 unit | (H)GW8-40.5 | H)GW8-72.5 | (H)GW8-126 | |
| 额定电压Rated voltage | kV | 40.5 | 72.5 | 126 | |
| 额定电压Rated current | A | 4,006,301,250 | |||
| 额定短时耐受电流4S Rated short time withstand current(Eff. | kA | 82,031.5 | |||
| 额定峰值耐受电流Peak withstand current(ampl. | kA | 205,080 | |||
| 1min工频耐压(有效值) 1min.power frequency withstand voltage | kV | 80 | 140 | 185 | |
| 雷电冲击耐压(峰值)Rated lightning impulse withstand voltage | kV | 185 | 325 | 450 | |
| 机械寿命Mechanical life | 次 | 2000 | 2000 | 2000 | |
| 接线端子额定机械负荷 Rated mechanical terminal load | 纵向Vertica | N | 800 | 800 | 800 |
| 横向Horizontal | N | 200 | 200 | 200 | |
| 泄露比距LeakAge Distance | mm/kV | 16(1极)20(II极)25(III极) | |||
| 人力机构操作力矩The operating torque of the manual mechanism | Nm | ≤200 | ≤200 | ≤200 | |
| 单极重量Weight of single pole | Kg | 120 | 160 | 200 | |
| 配用机构Mechanism supplied for disconnecto | CS8型手动操动机构或CJ6卧式电动机构 Cs8 Manual operating mechanism or CJ6 horizontal ype motor drive mechanism | ||||
订货须知Order Notice
1.户外隔离开关型号、规格；
2.使用环境条件(环境温度、海拔高度、环境污秽等级);
3.操动机构型号；
4.备品备件及专用工具、设备的名称与数量(需另行订货)。
When ordering,please note out following:
1.Type designation
2.Rated voltage
3.Type of operating mechanism and number of the touch finger in the auxiliary switch
4.The ambient conditions
5.Motor mechanism:Rated voltage of the motor 380V voltage of the control circuit (-200V、-380V)

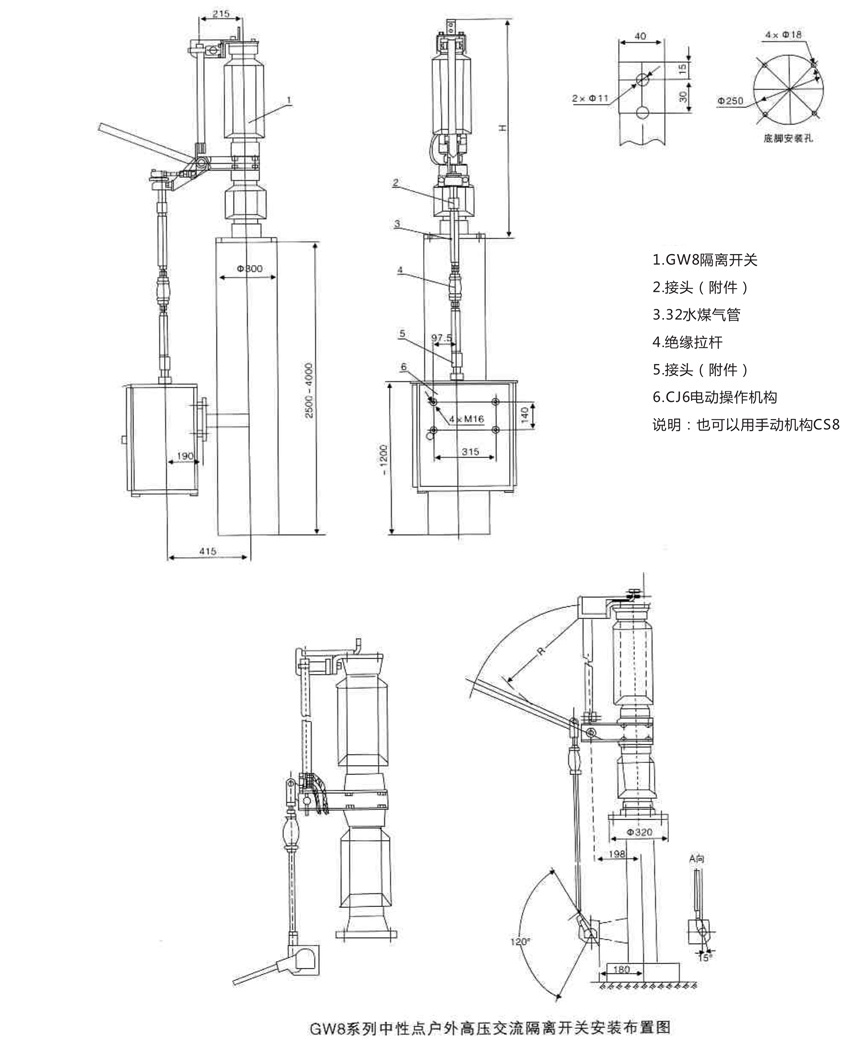

外形及安装尺寸图Overall and Installation Dimension
