GW1 outdoor AC high-voltage isolation switch is suitable for installation on outdoor high-voltage distribution equipment lines, for cutting off and converting lines when there is voltage or no load on the line

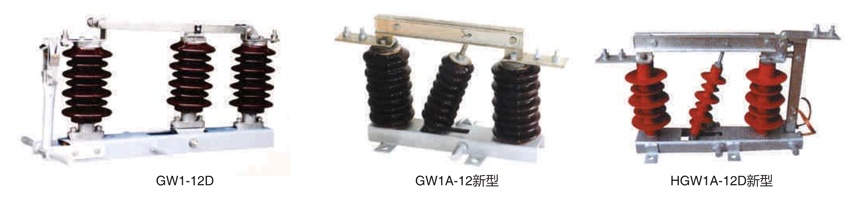

GW1型系列户外高压隔离开关Gw1 SIRES OUTDOOR HIGH VOLTAGE ISOLATOR SWITCH
用途Application
GW1型系列户外高压隔离开关,为单极结构的高压开关设备,在户外12kV线路网络中有电压无负载情况下分、合电路之用,带接地的刀开关,配用CS□型手动机构,可防止带电接地线和带接地线“合闸”等误操作,操作人员也不必再另挂地线。其中防污型户外高压隔离开关可满足严重污秽地区用户的要求,可以有效地解决隔离开关在运行中出现的污闪问题。
GW1 series outdoor high voltage isolator switch are high voltage switchgears of monopole structure and be applied for the connection anddisconnection of circuit under voltage without loading.kNife switch with earthing with CS mould manual operating mechanism can prevent diso-peration such as switching in etc.on line earthing wires and earthing wires.And the operating staff needs not to make additional suspension ofearthing wires.The pollution resistance type outdoor high voltage isolator can meet the demands of clients for heavily polluted areas and canmake effective solutions on the pollution flashover during the operation of disconnecting switches.

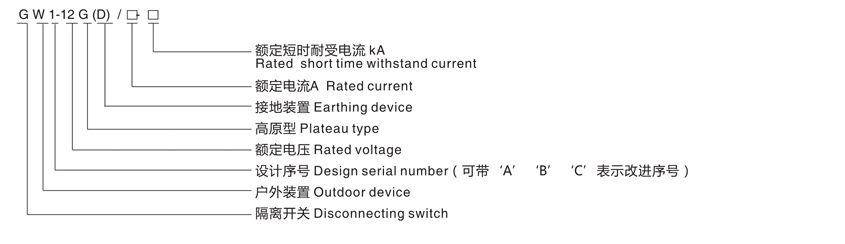

型号及含义Model and Implication
使用条件Normal Service Conditions
a.海拔高度不超过1000m。
b.周围空气温度:上限一般地区+40℃,下限一般地区-30℃,高寒地区-40℃。
c.风压不超过700Pa。(相当于风速34ms)
d.地震烈度不超过8度.
e.无频繁剧烈震动场所.
e.普通型安装场所应无严重影响隔离开关绝缘和导电能力的气体、蒸气。化学性沉积、盐雾、灰尘及其它爆炸性、侵蚀性物质。
g.防污型适用于重污秽地区,但不应有引起火灾及爆炸物质。
1.The altitude does not exceed 1000m.
2.The ambient air temperature:Maximum +40℃;Minimum:-30℃,Paramos -40℃.
3.The wind pressure does not exceed 700Pa.(Correspondingto 34m/s wind speed).
4.The earthquake intensity does not exceed 8 degrees.
5.The working situation has not frequent violent vibration.
6.The installation site of ordinary type isolator should be keptaway from gas,smoke chemical deposition,salt-spray fog,dust and other explosive and corrosive maters that affectseriously insulation and conduction capability of the isolator.
7.Pollution-proof type isolator is applying to severe filthyconduction area;however,it shouldn t be any explosivematters and matters causing fire.
主要技术数据 Main Technical Date
项目Item | 单位Uni | 参数Parameter | 备注Remark | ||
额定电压Rated voltage | kV | 12/17.5/24 | |||
额定电流Rated current | A | 630/1250 | |||
额定峰值耐受电流Rated peak withstand current | kA | 50100 | 接地闸刀与闸刀相同 The earthing switch is the same with the main switch | ||
额定短时耐受电流Rated short time withstand current | kA/4s | 2040 |

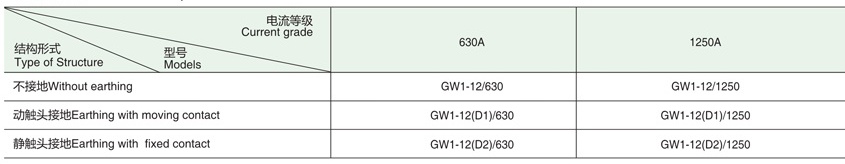

型号及规格Models and Specifcations

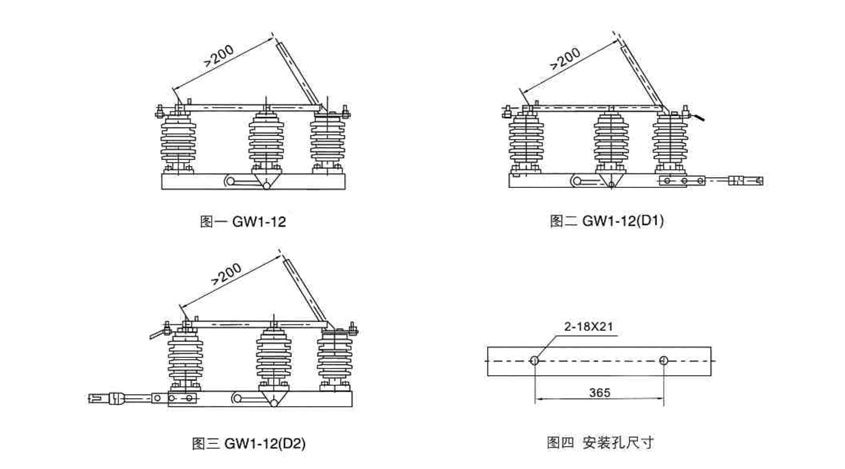

外形及安装尺寸 Appearance And Installation Dimensions
订货须知Order Notice
订购本开关时须注明产品全型号、额定电压、额定电流、热稳定电流,是否带接地装置以及设备安装方式等。特殊要求请与本厂联系。When you order this products,please indicate the models,rated voltage and rated current rate thermal stability current of products,whetherearthing device is needed and the installation method if the device etc.if you have any other requirement please contact with us.
HGW1 主要技术参数HGW1 Main Technical Parameters
项目Items | 单位 Unit | 参数Technical parameters | |||||||
额定电压Rated voltage | kV | 10 | 24 | 33 | |||||
最高工作电压Max.operating voltage | kV | 12 | 27 | 35 | |||||
额定绝缘 水平 Rated Insulation leve | 1min工频耐受电压(有效值) 1min,Power frequency withstand voltage | 对地To earth | kV | 40 | 50 | 80 | |||
断口Across open DS | kV | 47 | 60 | 80 | |||||
额定雷电冲击耐受电压(峰值) Rated lightning impulse withstand voltage | 对地To earth | kV | 105 | 125 | 180 | ||||
断口Across open DS | kV | 120 | 145 | 210 | |||||
额定频率Rated frequency | Hz | 50 | |||||||
额定电流Rated current | A | 200 | 400 | 630 | 1250 | ||||
4秒热稳定电流(有效值) 4s short time withstand current | kA | 6.3 | 12.5 | 20 | 31.5 | ||||
动稳定电流(峰值)Peak withstand current | kA | 16 | 31.5 | 50 | 80 | ||||
配用机构Mechanism supplied for disconnector | CS8-1、CS8-D、CD8-ⅡD防雨型手动机构 或CJ35电动操动机构 CS8-1、CS8-D.CD8-ⅡDRain type manual mechanism or CJ35 motor drive mechanism |

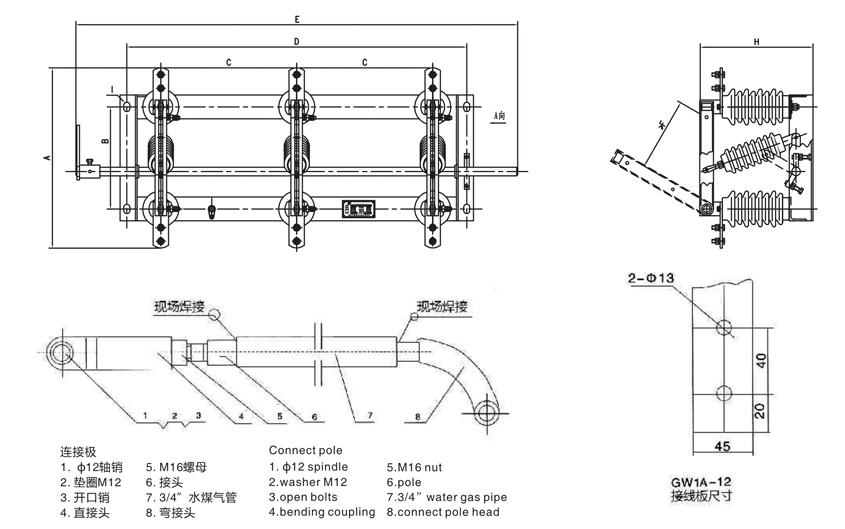

安装及外形尺寸图 Overall And Installation Dimension
型 号 Product model number | A | B | C | D | E | F | H | l |
GW1A-12 | 530 | 300 | 400 | 1000 | 1300 | 200 | 330 | 4-18x24 |
GW1A-24 | 630 | 400 | 600 | 1400 | 1700 | 300 | 430 | 4-18x24 |
